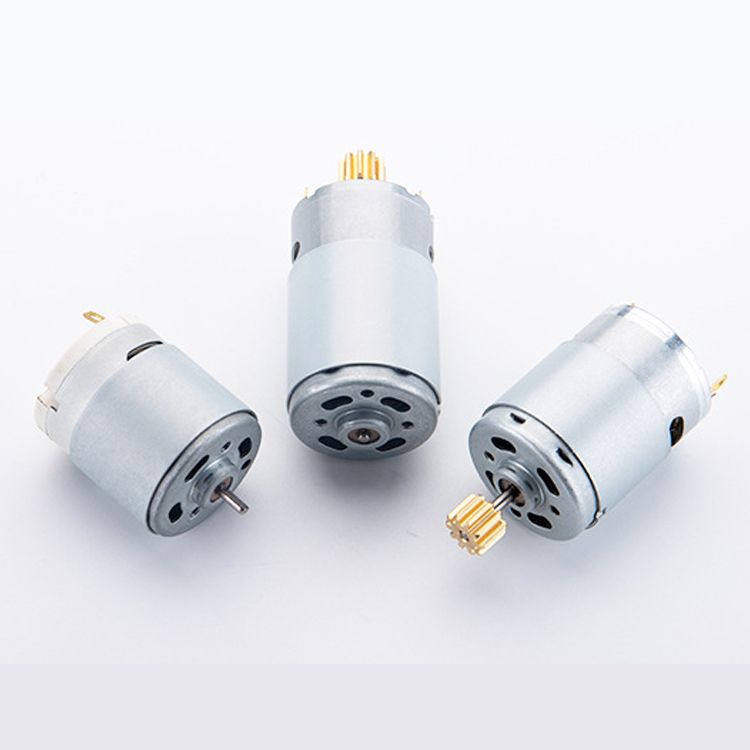

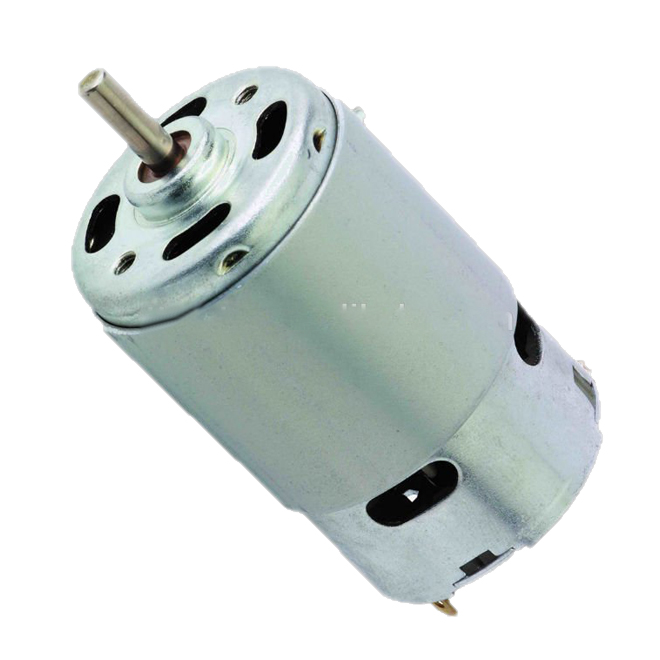

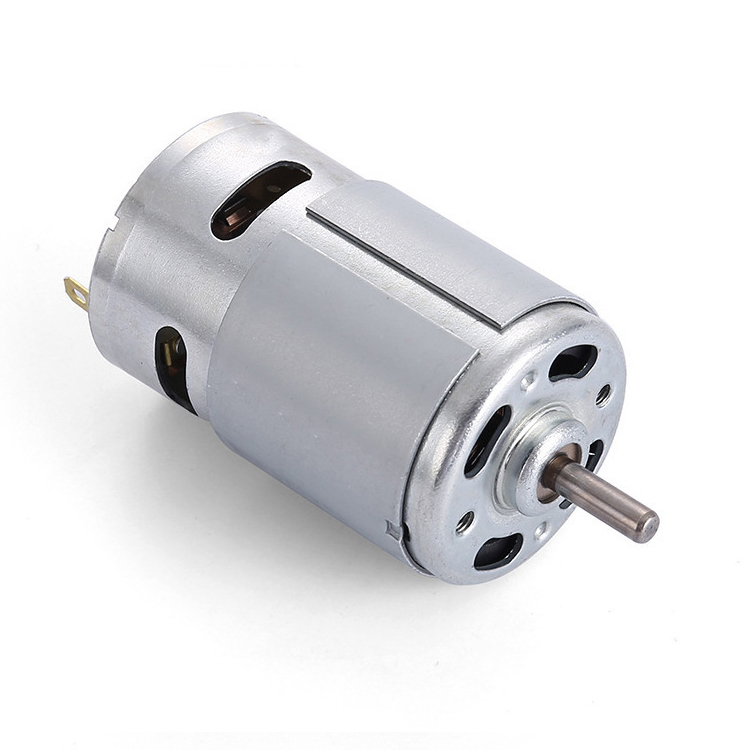

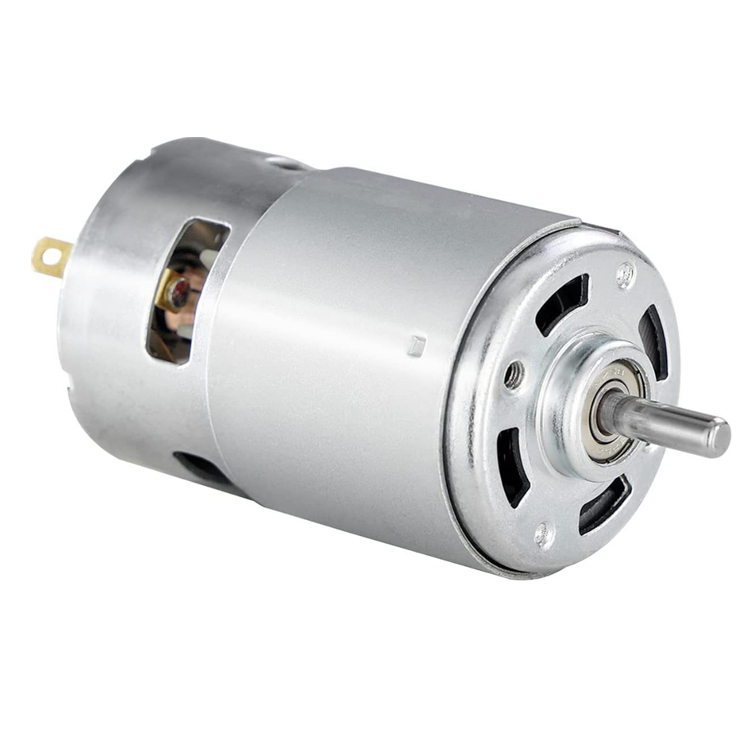

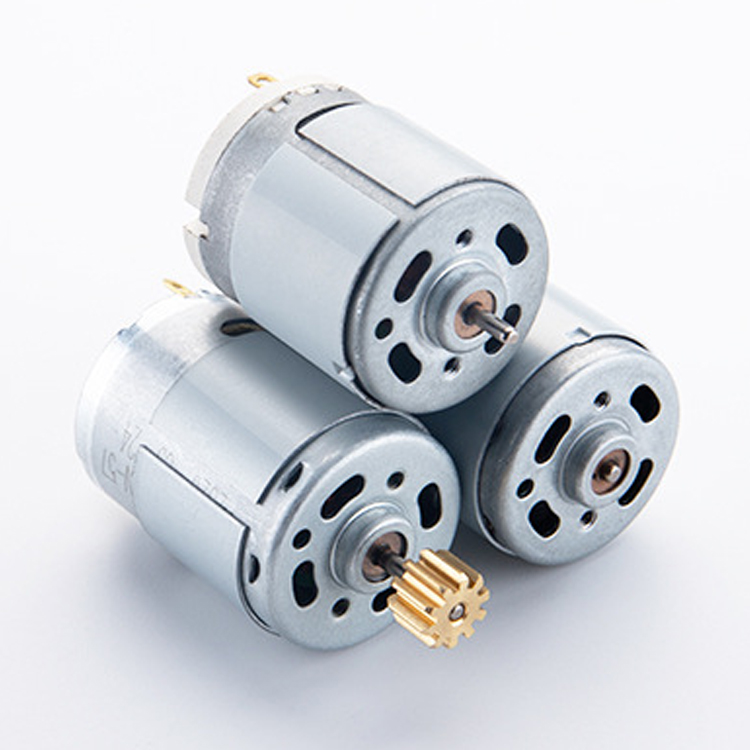

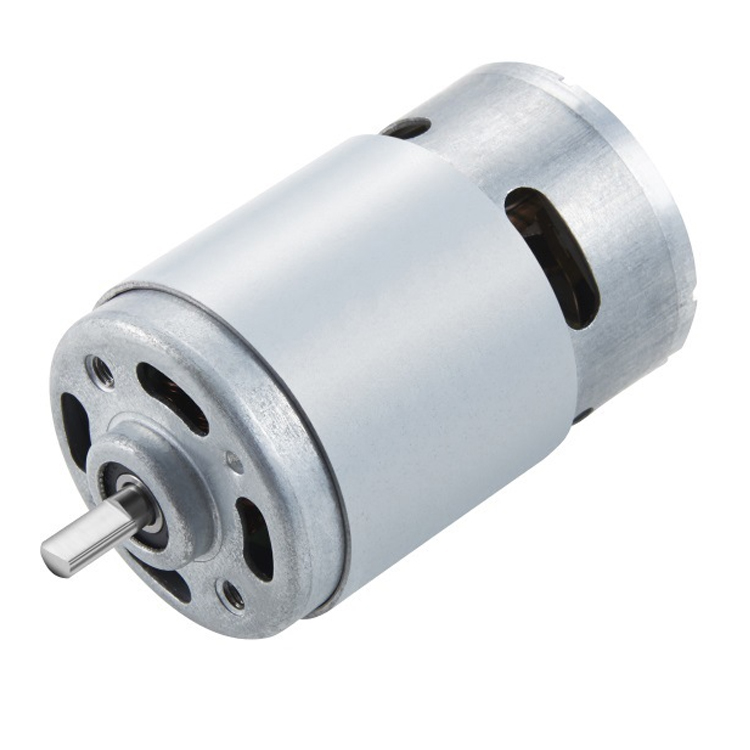

Tt Motor High Rpm RS-555 and RS-775 Dc Motor 12v 24v Dc Brushed Motor
Product Description
High RPM RS-555 and RS-775 DC Motor 12V 24V DC Brushed Motor
- Typical Applications: Printer, Copy Machine, Sewing Machine, Water Pump, Hair Dryer, Circular Saw, String Trimmer, etc.
- High efficiency, less noise, and low current 24V DC motor.
- Compatible with 45mm planetary gearbox or 51mm gearbox options.
- Shaft: 5.0mm diameter, available in length of 14.5mm or 19.5mm.
- Mounting holes: 2-M4.0x0.7 specifications.
- Double shaft structure configured for 12ppr encoders.
- Samples are available for evaluation and testing.
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
| V | rpm | A | rpm | A | mN.m | g.cm | w | mN.m | g.cm | A | |||
| TRS-775PM | 2765 | 6.0-30.0 | 24.0 | 7600 | 0.37 | 5810 | 0.22 | 73.53 | 750 | 44.7 | 312.35 | 3186 | 8.23 |
| 4045 | 6.0-15.0 | 12.0 | 4600 | 0.60 | 3500 | 4.30 | 84.31 | 860 | 36.6 | 352.94 | 3600 | 16.1 | |
Frequently Asked Questions
What are the primary applications for the RS-555 and RS-775 DC motors?
These motors are widely used in appliances requiring high speed and torque efficiency, such as printers, copy machines, sewing machines, water pumps, hair dryers, circular saws, and string trimmers.
Can these motors be configured with a gearbox?
Yes. Both models can be matched with a 45mm planetary gearbox or a 51mm gearbox to provide higher torque outputs at lower speeds.
What are the dimensions of the motor shaft?
The standard models feature a shaft diameter of 5.0mm. The shaft length options are 14.5mm or 19.5mm depending on your mounting needs.
Are these brushed motors compatible with speed feedback systems?
Yes, these motors feature a double shaft configuration designed specifically for encoder integration, supplying a resolution of 12ppr.
What operating voltages do these motors support?
The typical operating range is between 6.0V and 30.0V DC. Popular options include dedicated configurations optimized for 12V and 24V nominal operations.
Is it possible to request motor samples for testing purposes?
Yes, samples can be provided upon request so you can verify the performance compatibility with your specific application setup before ordering.
