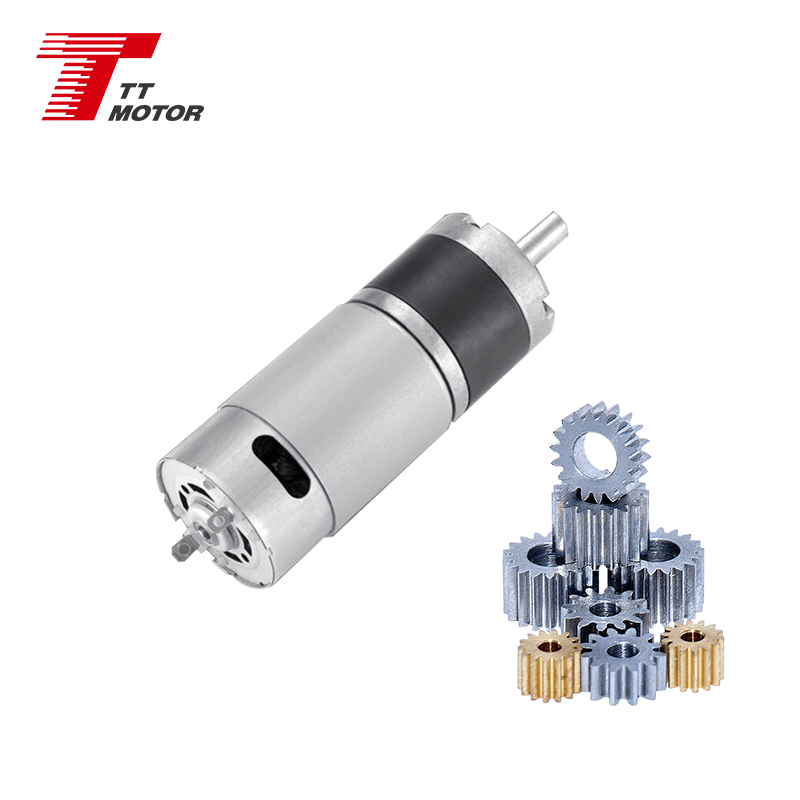

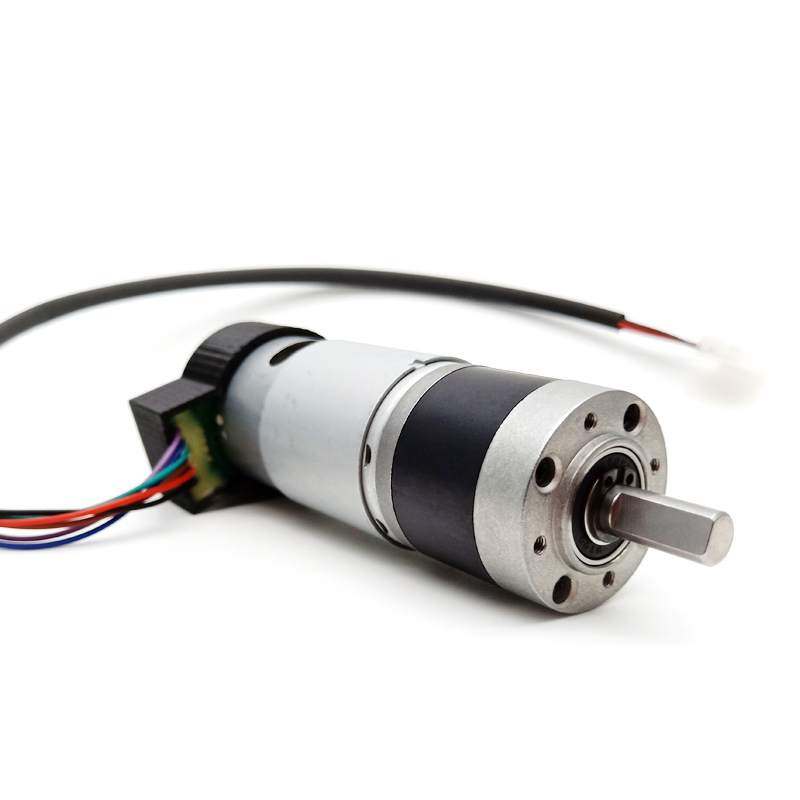

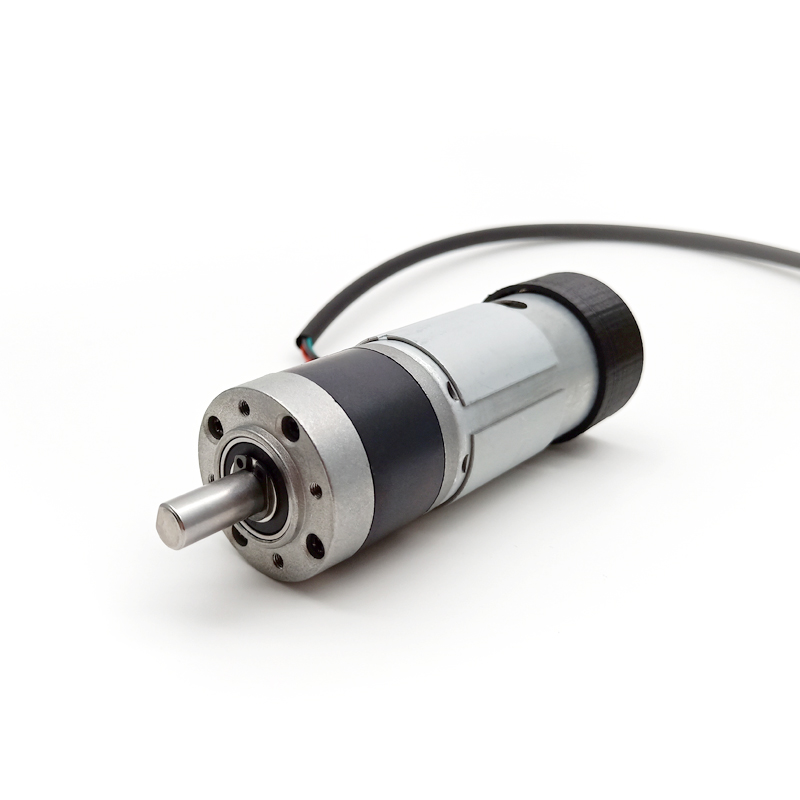

GMP36-555PM-EN Electric Motor Dc 24v Planetary Gear Motor Encoder

⚙️ Product Application

Automatic door operators, automatic energy saving bath, electrical controlled valve, oxygen machine, 12V dc gear motor, optical equipment, Automat cordless power tool, lighting, etc.

📊 Gear Motor Model Specs

Model: Gear Motor GMP36-555PM (TTRS-555PM-1233)

Rated voltage: 12VDC

Rated speed: 2800r/min

Output power: 5.7W

No-load speed: 3300r/min

Rated torque: 200g.cm

Stall torque: 1150g.cm

No-load current: 200mA

Rated current: 1000mA

Stall current: 5.5A

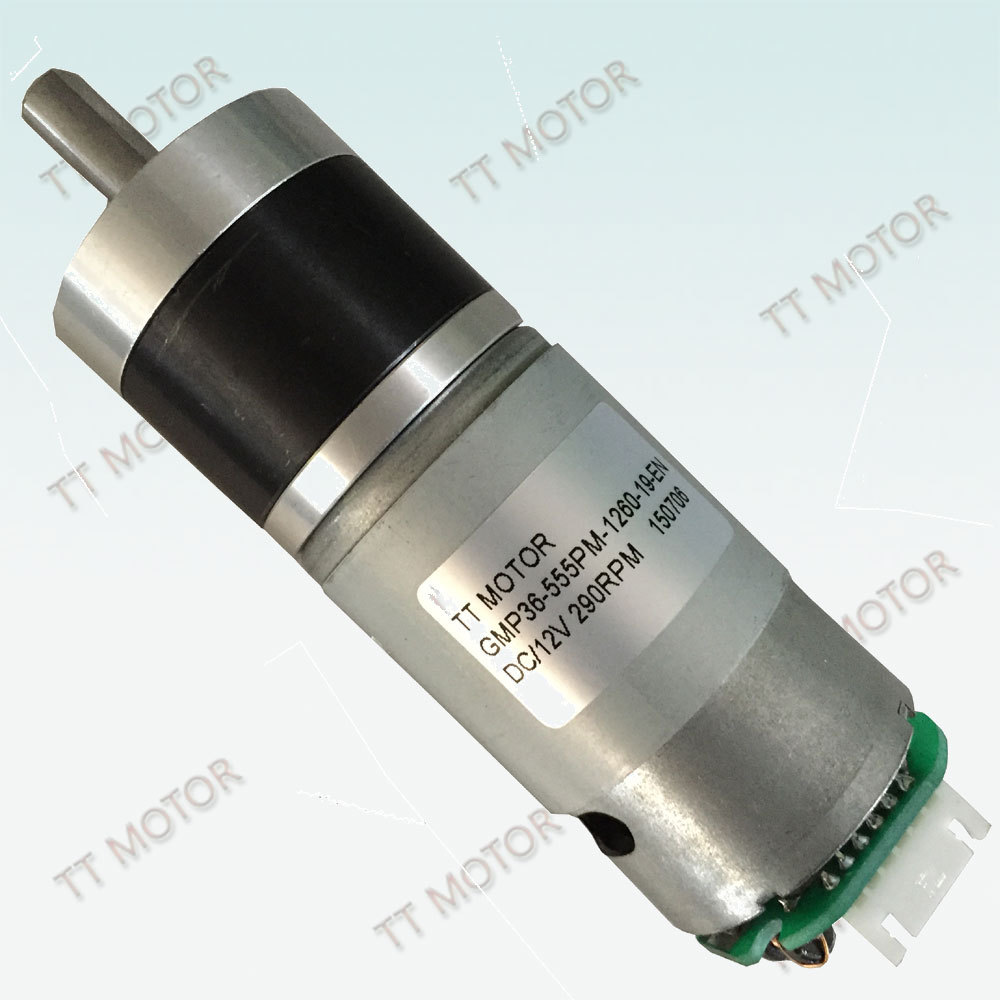

Model: Gear Motor GMP36-555PM (TTRS-555PM-1260)

Rated voltage: 12VDC

Rated speed: 5250r/min

Output power: 16W

No-load speed: 6000r/min

Rated torque: 290g.cm

Stall torque: 2200g.cm

No-load current: 300mA

Rated current: 2400mA

Stall current: 15.0A

Model: Gear Motor GMP36-555PM (TTRS-555PM-2440)

Rated voltage: 24VDC

Rated speed: 3150r/min

Output power: 6.4W

No-load speed: 2400r/min

Rated torque: 200g.cm

Stall torque: 1000g.cm

No-load current: 150mA

Rated current: 700mA

Stall current: 2.7A

✨ Main Features

36mm Planetary reducer plus 3530, 5 series of carbon brush motor and TEC3650 & 3640 brushless motor
Small size DC gear motor with low speed and big torque
36mm gear motor provides 3.0Nm torque and is more reliable
Suitable for small diameter, low noise, and big torque applications
DC Gear motors can match encoder, 11pr
Reduction ratio options: 4, 14, 19, 51, 71, 100, 139, 189, 264, 369, 516, 720

📋 Performance Specifications

GMP36-555PM-1233-xxx

Reduction ratio	4	19	51	100	139	189	264	369	516
Length mm	26	33.5	33.5	40.5	40.5	47.5	47.5	47.5	47.5
No-load speed rpm	750	160	60	32	23	17	12	9	6
Rated speed rpm	700	150	55	28	20	15	11	8	5.5
Rated torque kg.cm	0.64	2.7	6	12	15	21	26	30	30
Max. momentary tolerance torque kg.cm	3.7	15	35	70	70	70	70	70	70

GMP36-555PM-1260-xxx

Reduction ratio	4	19	51	100	139	189	264	369	516
Length mm	26	33.5	33.5	40.5	40.5	47.5	47.5	47.5	47.5
No-load speed rpm	1400	300	110	55	42	32	23	16	11.5
Rated speed rpm	1300	275	100	50	38	28	20	15	10.5
Rated torque kg.cm	0.9	3.8	9	18	22	30	30	30	30
Max. momentary tolerance torque kg.cm	5	20	60	60	60	70	70	70	70

GMP36-555PM-2440-xxx

Reduction ratio	4	19	51	100	139	189	264	369	516
Length mm	26	33.5	33.5	40.5	40.5	47.5	47.5	47.5	47.5
No-load speed rpm	980	200	75	38	28	21	15	10	7.5
Rated speed rpm	750	155	60	30	21	16	13	9.5	7
Rated torque kg.cm	0.64	2.7	6	12	15	21	26	30	30
Max. momentary tolerance torque kg.cm	3.2	13	25	50	60	70	70	70	70

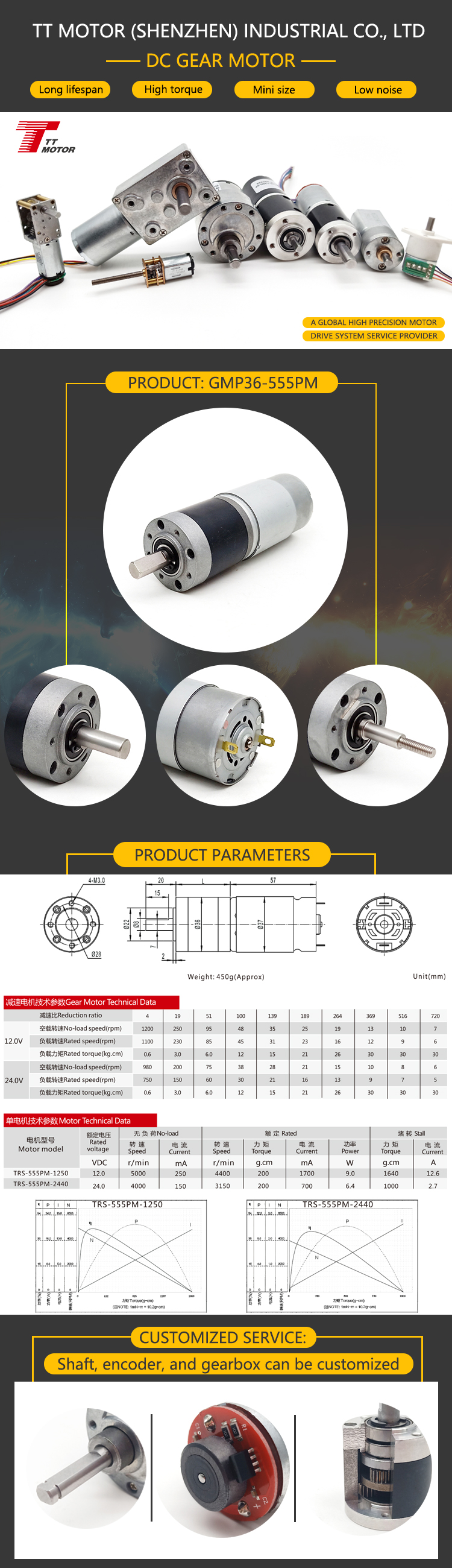

📸 Product Gallery

Product Application Detail

Automatic door operators, automatic energy saving bath, electrical controlled valve, robots, grass cutter, electric curtain, camera, medical service, oxygen machine, etc.

⚙️ Other Applications

Business Machines	Camera and Optical	Lawn and Garden
Vending Machines	Video	Lawn Mowers
Printers	Cameras	Snow Blowers
ATM	Projectors	Trimmers
Copiers and Scanners	-	Leaf Blowers

🏆 Certifications

ISO9001, SGS, National high-tech enterprises, etc.

🏢 Enterprise Profile

We have been specializing in micro motors, gear motors and their respective parts since 2000. Our products are widely used in entertainment systems, automobiles, home and industrial appliances and tools and many others. Our products are dependable and long-lasting, and backed by years of experience. We export 98% of our output worldwide. By leveraging our hard-won reputation for honesty, dependability and quality, we aim to continue as a pioneer in overseas sales by seeking global partners. If your company is an end-user of micro-motors, a distributor or an agent, please contact us. We look forward to being able to work together with you in the near future.

👥 Customers & Feedback

Our Customers: NIKE, FLEXTRONICS, STANLEY, etc.

Customer Feedback: Excellent quality, better price, good service, and on-time delivery.

📦 Packing & Delivery

Standard packing
Shipping times:
DHL: 3-5 working days; UPS: 5-7 working days; TNT: 5-7 working days; FedEx: 7-9 working days; EMS: 12-15 working days; China Post: Depends on shipping destination; Sea: Depends on shipping destination.

Frequently Asked Questions

How do I place an order?

Send us an inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production → cargo ready → balance/delivery → further cooperation.

Can I place a sample order?

Yes, samples are available for you. Please reach out to us for details. Sample fees charged will be refunded when a formal order is placed.

Which shipping options are available?

DHL, UPS, FedEx, TNT, EMS, China Post, and Sea freight are all available options. If you require another shipping method, please let us know so we can accommodate your needs.

How long does the production and shipping take?

Delivery time depends heavily on the quantity ordered. Typically, mass production takes 15-25 working days.

What should I do if my package has missing products?

Please contact our support team immediately, and we will cross-reference the package contents with your order database. We apologize for any inconvenience caused.

How can I confirm my payment details?

We accept payments via T/T and PayPal. Other payment methods can also be negotiated; please verify details with us beforehand. We allow a 30-50% deposit, with the remaining balance due prior to shipment.
