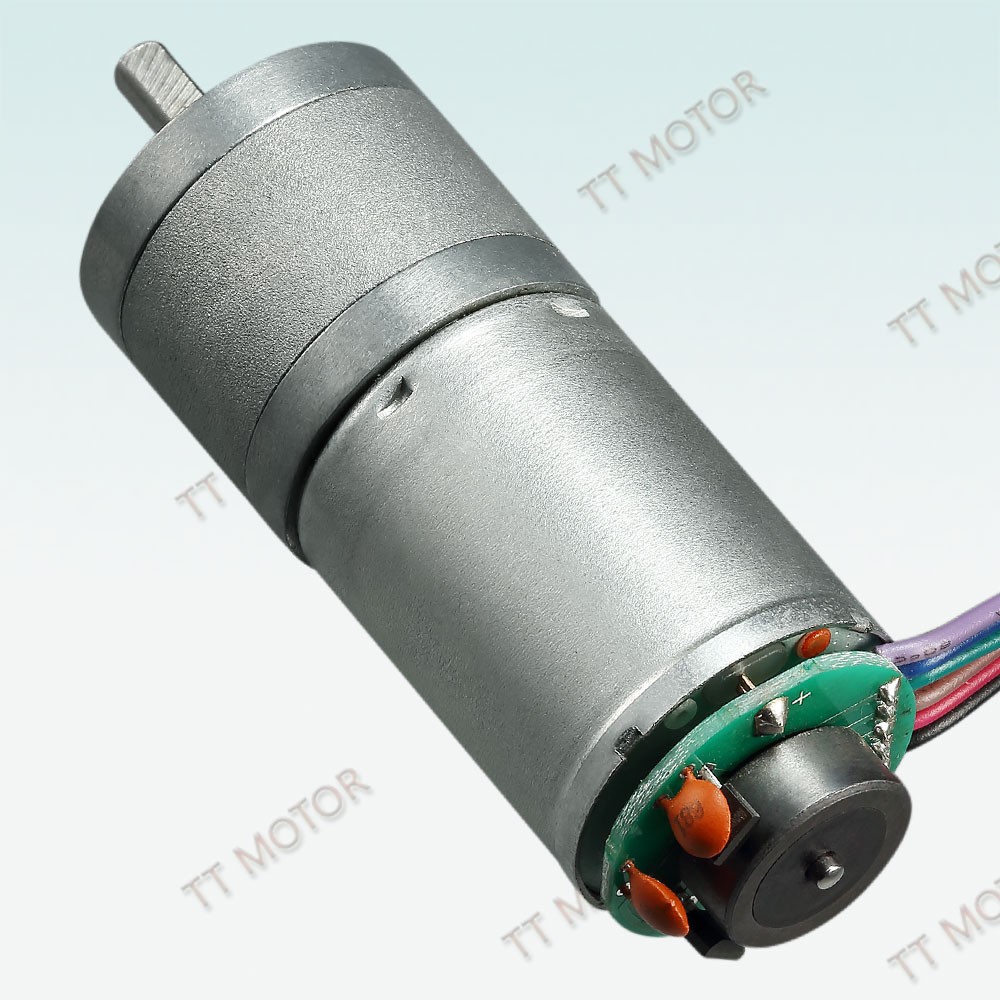

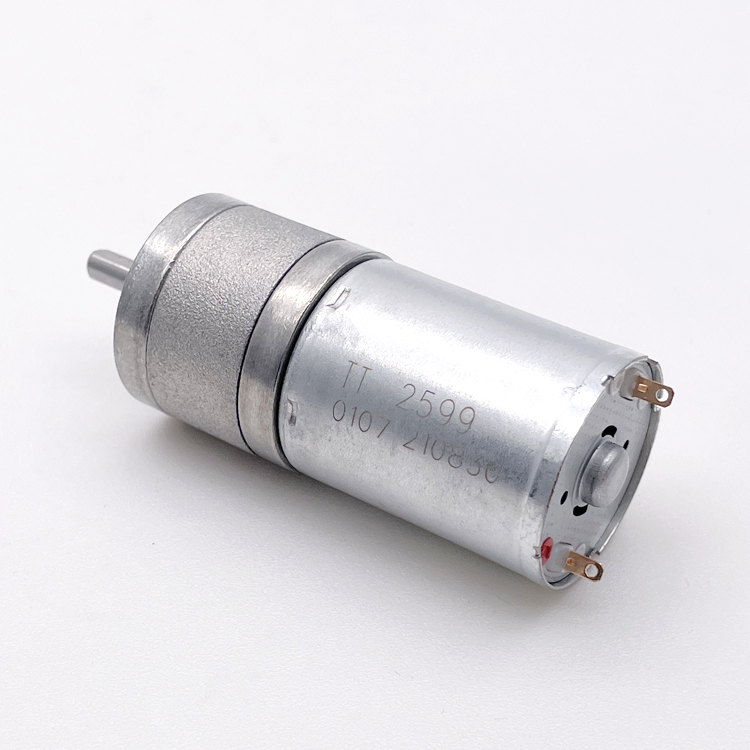

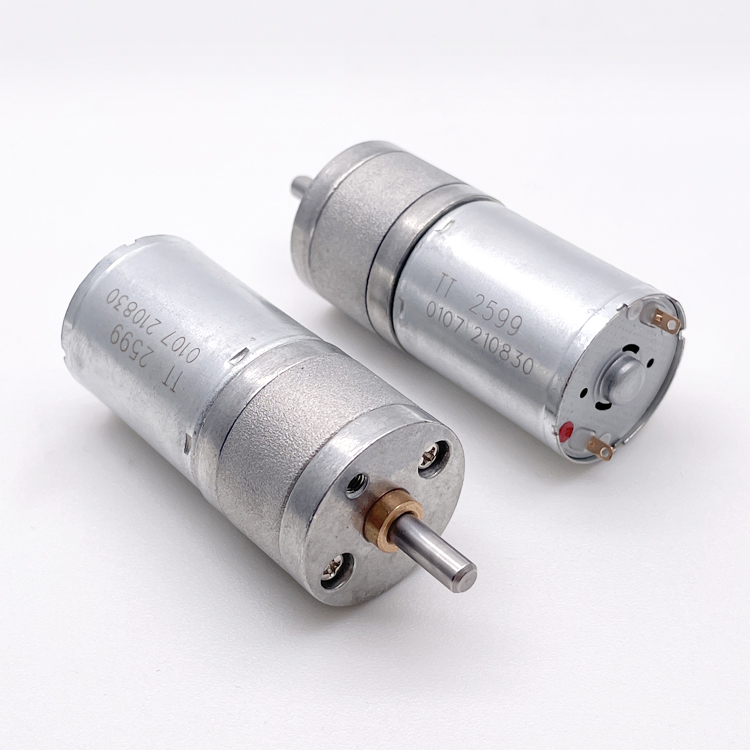

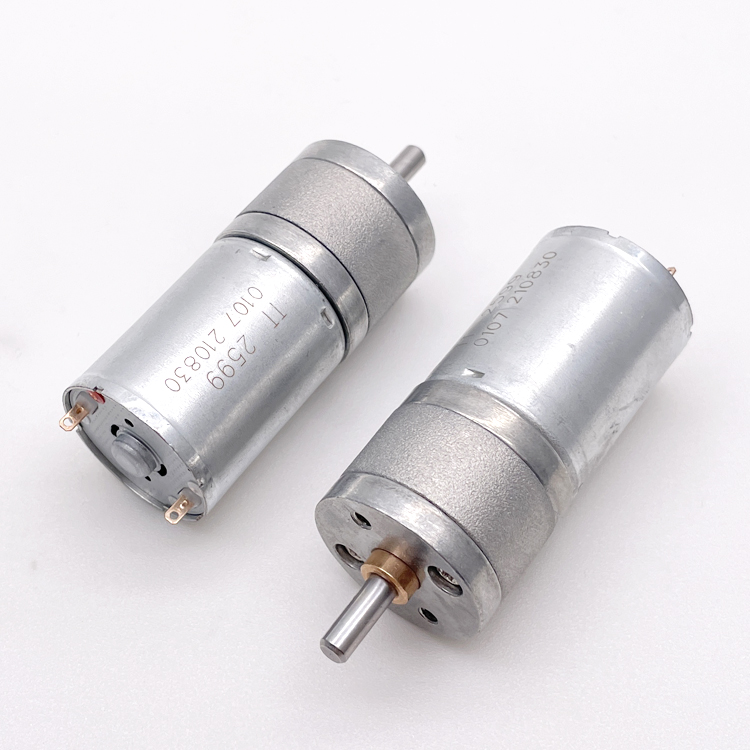

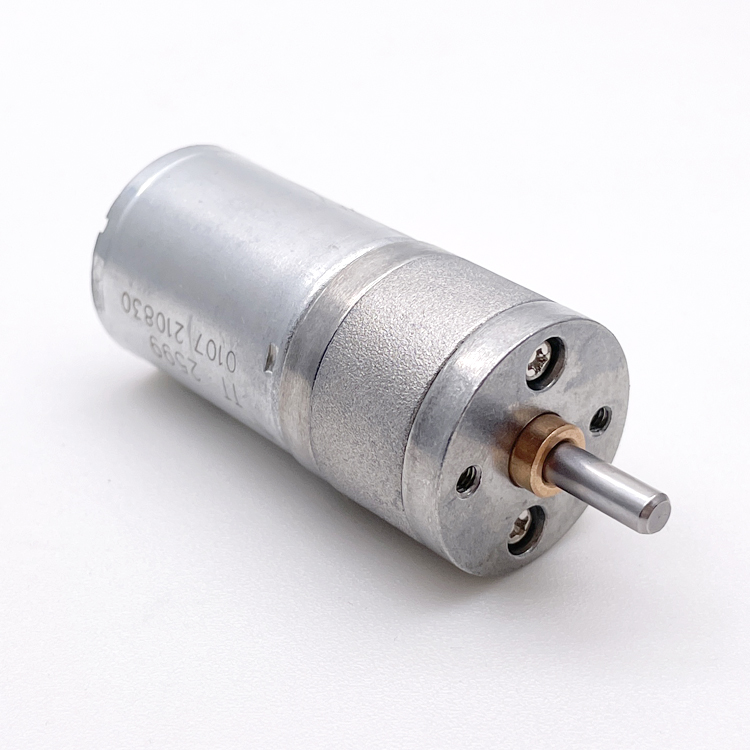

GM25-370CA Electric 12v Encoder Dc Gear Motor for Automatic Toys
Product Description
GM25-370CA Electric 12V Encoder DC Gear Motor for Automatic Toys
Product Application
Automatic door operators, automatic energy saving bath, electrical controlled valve, oxygen machine, optical equipment, Automat cordless power tool, lighting, etc.
Main Features
- 25mm gearbox plus 370 & 320 permanent magnet DC motor
- Small size DC gear motor with low speed and big torque
- 25mm gear motor provides 0.5Nm torque and is more reliable
- Suitable for small diameter, low noise, and big torque applications
- DC gear motors can match encoder, 11ppr
- Reduction ratios: 4, 10, 21, 34, 45, 47, 78, 103, 130, 172, 227, 378, 499

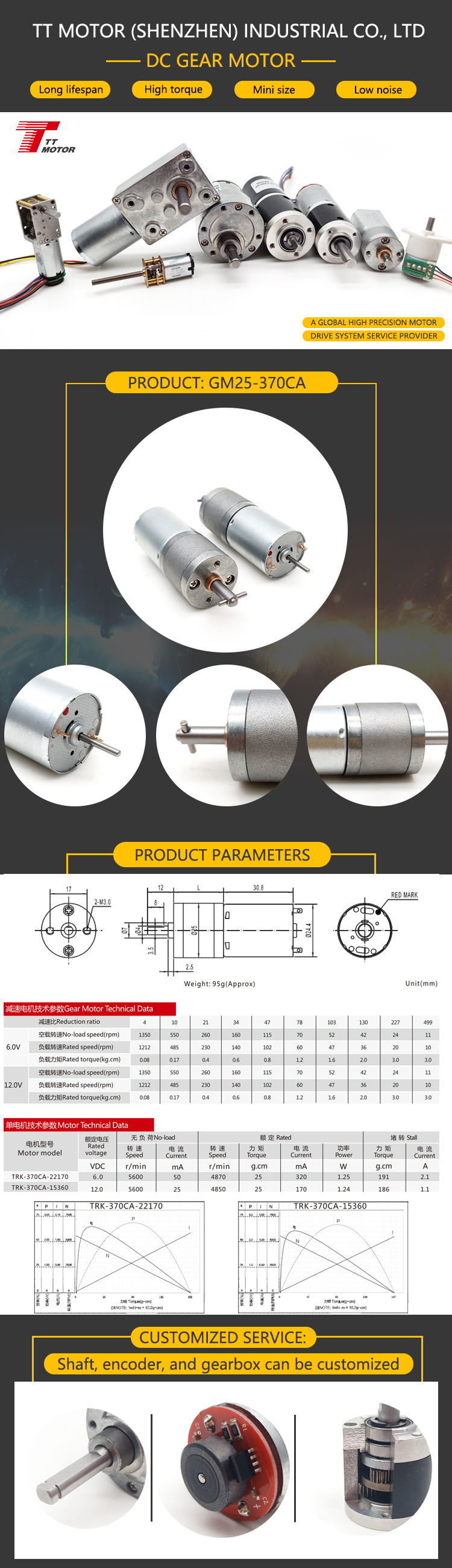

Specifications: Model GM25-370CA
| Model Parameter | Rated Voltage | No-Load Performance | Rated Performance | Stall Performance | Output Power |
|---|---|---|---|---|---|
| TRK-370CA-22170 | 6VDC | 5600r/min / 50mA | 4800r/min / 24g.cm / 300mA | 186g.cm / 2.1A | 1.18W |
| TRK-370CA-15360 | 12VDC | 5600r/min / 25mA | 4800r/min / 24g.cm / 160mA | 186g.cm / 1.06A | 1.18W |
| TRK-370CA-12560 | 12VDC | 3700r/min / 20mA | 3000r/min / 20g.cm / 90mA | 125g.cm / 0.6A | 0.62W |
GM25-370CA-22170-xxx Parameters
| Reduction ratio | 4 | 10 | 21 | 34 | 47 | 78 | 103 | 130 | 227 |
|---|---|---|---|---|---|---|---|---|---|
| Length mm | 17 | 19 | 19 | 21 | 21 | 23 | 23 | 25 | 25 |
| No-load speed rpm | 1280 | 510 | 245 | 150 | 110 | 68 | 50 | 42 | 24 |
| Rated speed rpm | 1200 | 480 | 230 | 137 | 102 | 62 | 47 | 37 | 21 |
| Rated torque kg.cm | 0.06 | 0.15 | 0.3 | 0.5 | 0.7 | 1.1 | 1.5 | 1.7 | 2.7 |
| Max. tolerance torque kg.cm | 0.45 | 1.1 | 2.3 | 3.9 | 5.2 | 10 | 10 | 10 | 10 |
GM25-370CA-15360-xxx Parameters
| Reduction ratio | 4 | 10 | 21 | 34 | 47 | 78 | 103 | 130 | 227 |
|---|---|---|---|---|---|---|---|---|---|
| Length mm | 17 | 19 | 19 | 21 | 21 | 23 | 23 | 25 | 25 |
| No-load speed rpm | 1280 | 510 | 245 | 150 | 110 | 68 | 50 | 42 | 24 |
| Rated speed rpm | 1200 | 480 | 230 | 137 | 102 | 62 | 47 | 37 | 21 |
| Rated torque kg.cm | 0.06 | 0.15 | 0.3 | 0.5 | 0.7 | 1.1 | 1.5 | 1.7 | 2.7 |
| Max. tolerance torque kg.cm | 0.45 | 1.1 | 2.3 | 3.9 | 5.2 | 10 | 10 | 10 | 10 |
GM25-370CA-12560-xxx Parameters
| Reduction ratio | 4 | 10 | 21 | 34 | 47 | 78 | 103 | 130 | 478 |
|---|---|---|---|---|---|---|---|---|---|
| Length mm | 17 | 19 | 19 | 21 | 21 | 23 | 23 | 25 | 27 |
| No-load speed rpm | 850 | 340 | 165 | 100 | 75 | 48 | 34 | 27 | 7.5 |
| Rated speed rpm | 750 | 300 | 145 | 86 | 64 | 38 | 29 | 23 | 6.3 |
| Rated torque kg.cm | 0.05 | 0.12 | 0.26 | 0.4 | 0.6 | 0.9 | 1.2 | 1.4 | 2.5 |
| Max. tolerance torque kg.cm | 0.3 | 0.75 | 1.5 | 2.6 | 3.5 | 10 | 10 | 10 | 10 |
Packaging & Shipping
| Model Reference | Case Pack (pcs) | Carton Size | Carton Gross Weight |
|---|---|---|---|
| GM12-N20VA | 840 | 41.5*34.5*18.5 CM | 10.5kg |
Application Info
Typical Application Details
Business Machines: ATM, Copiers and Scanners, Currency Handling, Point of Sale, Printers, Vending Machines.
Food and Beverage: Beverage Dispensing, Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk.
Camera and Optical: Video, Cameras, Projectors.
Medical: Urine Analyzer, Blood Sugar Analyzer, Injector.
Lawn and Garden: Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers.
Certifications
Customer Reviews
Our Customers
Profile Overview
We have been specializing in micro motors, gear motors and their respective parts since 2000. Our products are widely used in entertainment systems, automobiles, home and industrial appliances and tools and many others.
Our products are dependable and long-lasting, and backed by years of experience. We export 98% of our output worldwide. By leveraging our hard-won reputation for honesty, dependability and quality, we aim to continue as a pioneer in the sales overseas by seeking global partners. If your company is an end-user of micro-motors, a distributor or an agent, please contact us. We look forward to being able to work together with you in the near future.
Frequently Asked Questions (FAQ)
What are the primary applications of the GM25-370CA gear motor?
This motor is widely used in automatic door operators, automated energy-saving bath units, electrical controlled valves, oxygen machines, optical equipment, cordless power tools, and high-quality automatic toys.
Does this DC gear motor support speed and position feedback?
Yes, the GM25-370CA DC gear motor is designed to match with an integrated encoder providing a feedback resolution of 11 PPR (pulses per revolution) for precise control.
What reduction ratios are available for this model?
We offer a wide range of reduction ratios to meet different output speed and torque requirements, including: 4, 10, 21, 34, 45, 47, 78, 103, 130, 172, 227, 378, and 499.
Can the motor run on custom voltages?
The standard models are rated for 6VDC and 12VDC operations. However, specific motor performance curves can be adjusted to match designated voltage ranges depending on application需求.
What is the maximum torque capability of this micro gear motor?
The 25mm gearbox configuration provides a reliable continuous torque of up to 0.5Nm, with dynamic tolerance limits specified under individual reduction ratio parameters.
How is the product packaged for bulk shipment?
For standard micro gear motors like the GM12-N20VA model, they are packaged in secure cartons containing 840 pcs per box, measuring 41.5*34.5*18.5 CM with a gross weight of approximately 10.5kg.
