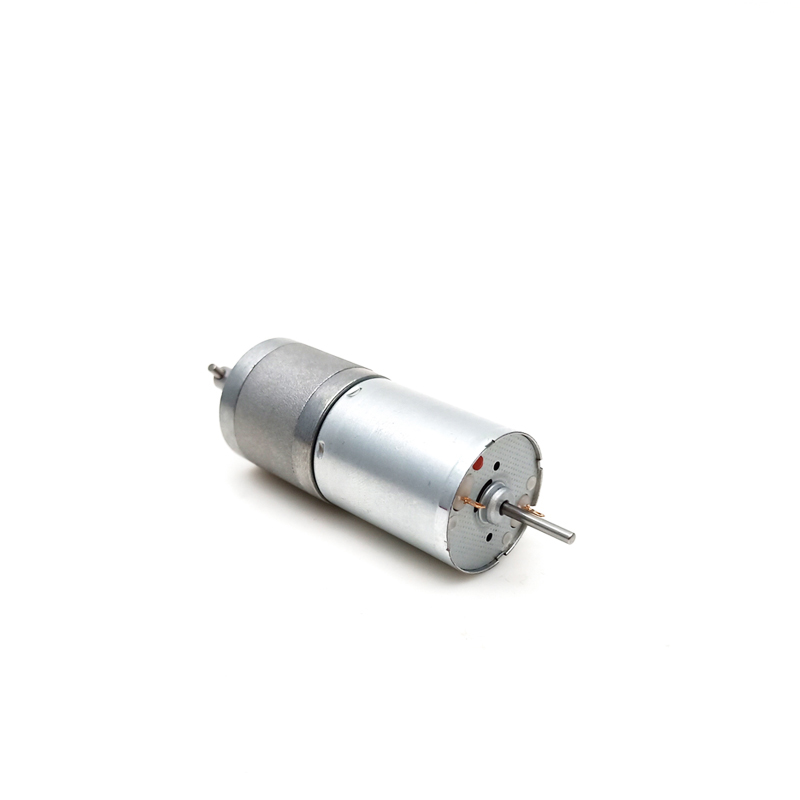

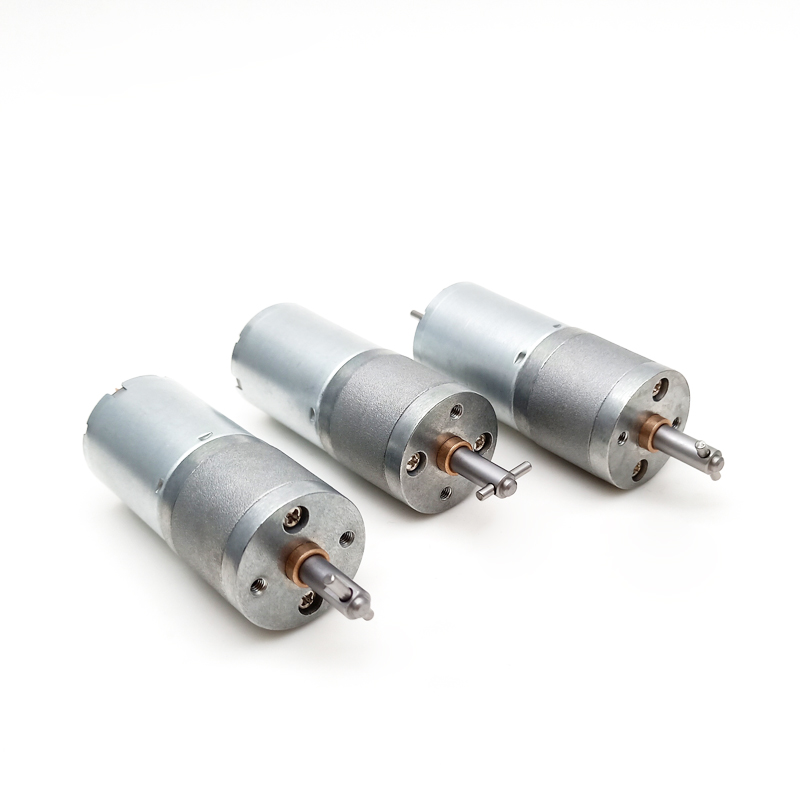

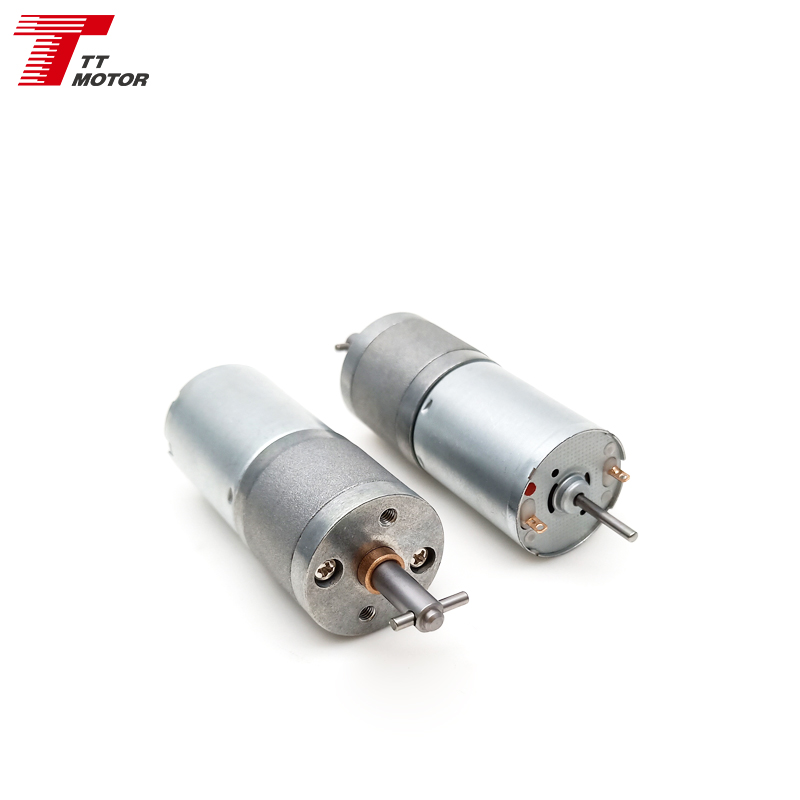

GM25-370CA 6v 12v Dc Electric Gear Motor for TV Broadcast Satellite Antenna
Product Description
GM25-370CA 6V 12V DC Electric Gear Motor for TV Broadcast Satellite Antenna
Main Features

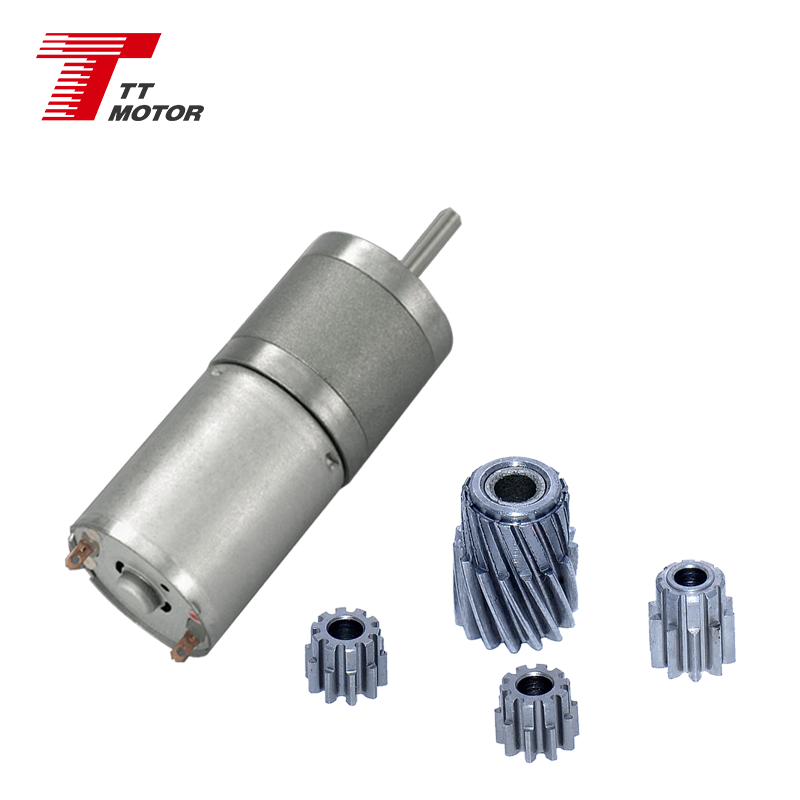

- 25mm gearbox plus 370 & 320 permanent magnet DC motor
- Small size DC gear motor with low speed and big torque
- 25mm gear motor provides 0.5Nm torque and more reliability
- Suitable for small diameter, low noise, and big torque applications

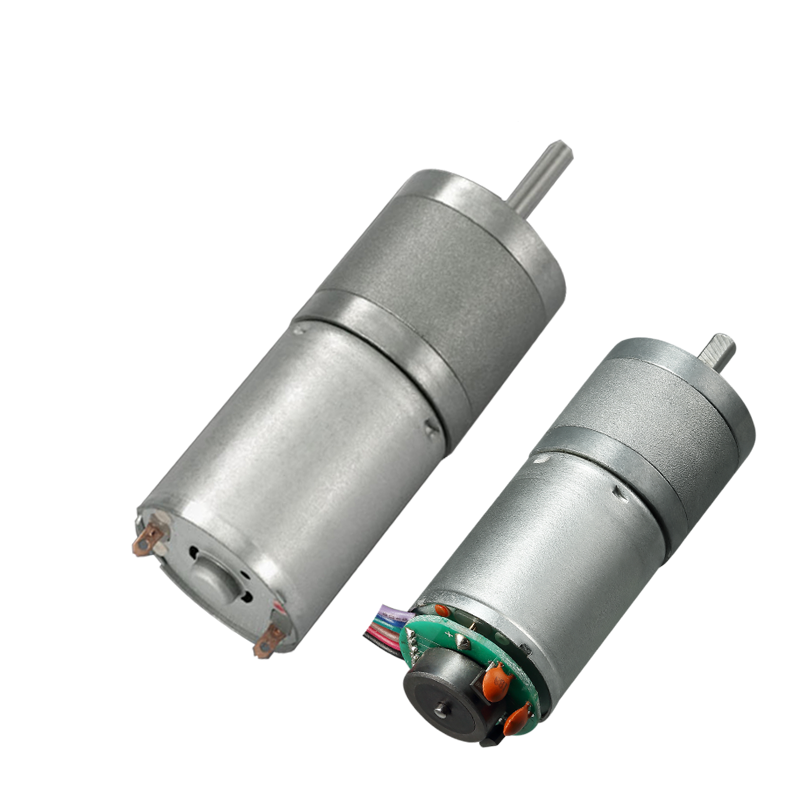

- DC gear motors can match encoder (11ppr)
- Reduction ratio: 4, 10, 21, 34, 45, 47, 78, 103, 130, 172, 227, 378, 499

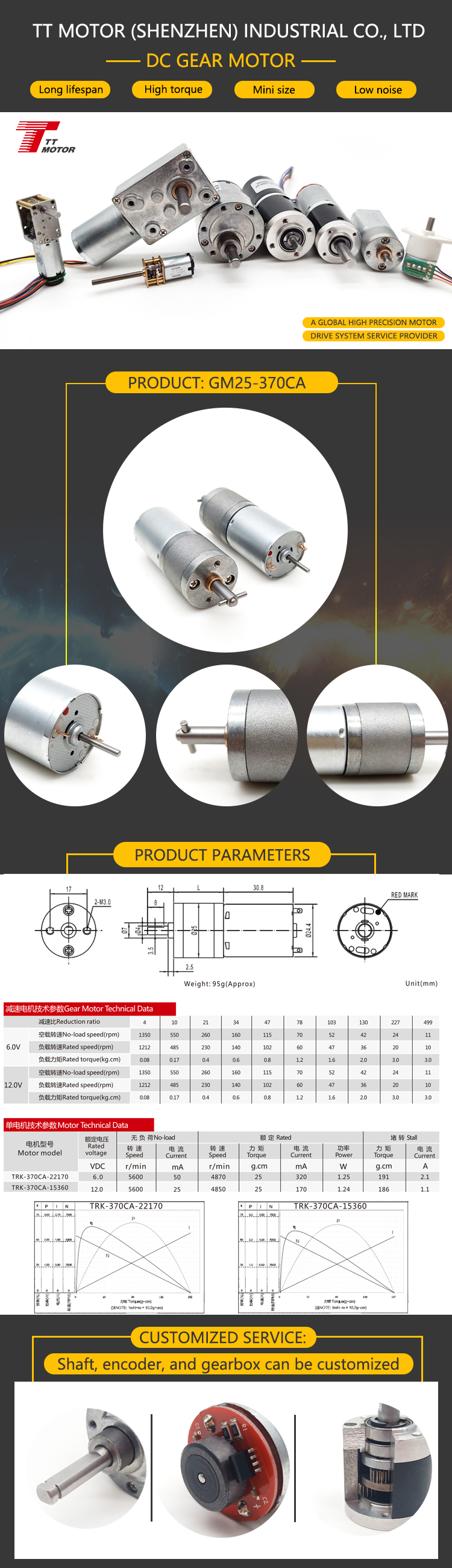

Model Specifications
| Model: Motor GM25-370CA | Electrical & Performance Specs |
|---|---|
| TRK-370CA-22170 | Rated voltage: 6VDC | Rated speed: 4800r/min | Output power: 1.18W |
| No-load speed: 5600r/min | Rated torque: 24g.cm | Stall torque: 186g.cm | |
| No-load current: 50mA | Rated current: 300mA | Stall current: 2.1A | |
| TRK-370CA-15360 | Rated voltage: 12VDC | Rated speed: 4800r/min | Output power: 1.18W |
| No-load speed: 5600r/min | Rated torque: 24g.cm | Stall torque: 186g.cm | |
| No-load current: 25mA | Rated current: 160mA | Stall current: 1.06A | |
| TRK-370CA-12560 | Rated voltage: 12VDC | Rated speed: 3000r/min | Output power: 0.62W |
| No-load speed: 3700r/min | Rated torque: 20g.cm | Stall torque: 125g.cm | |
| No-load current: 20mA | Rated current: 90mA | Stall current: 0.6A |
GM25-370CA-22170-xxx Performance Details
| Parameter | 4 | 10 | 21 | 34 | 47 | 78 | 103 | 130 | 227 |
|---|---|---|---|---|---|---|---|---|---|
| Length (mm) | 17 | 19 | 19 | 21 | 21 | 23 | 23 | 25 | 25 |
| No-load speed (rpm) | 1280 | 510 | 245 | 150 | 110 | 68 | 50 | 42 | 24 |
| Rated speed (rpm) | 1200 | 480 | 230 | 137 | 102 | 62 | 47 | 37 | 21 |
| Rated torque (kg.cm) | 0.06 | 0.15 | 0.3 | 0.5 | 0.7 | 1.1 | 1.5 | 1.7 | 2.7 |
| Max. tolerance torque (kg.cm) | 0.45 | 1.1 | 2.3 | 3.9 | 5.2 | 10 | 10 | 10 | 10 |
GM25-370CA-15360-xxx Performance Details
| Parameter | 4 | 10 | 21 | 34 | 47 | 78 | 103 | 130 | 227 |
|---|---|---|---|---|---|---|---|---|---|
| Length (mm) | 17 | 19 | 19 | 21 | 21 | 23 | 23 | 25 | 25 |
| No-load speed (rpm) | 1280 | 510 | 245 | 150 | 110 | 68 | 50 | 42 | 24 |
| Rated speed (rpm) | 1200 | 480 | 230 | 137 | 102 | 62 | 47 | 37 | 21 |
| Rated torque (kg.cm) | 0.06 | 0.15 | 0.3 | 0.5 | 0.7 | 1.1 | 1.5 | 1.7 | 2.7 |
| Max. tolerance torque (kg.cm) | 0.45 | 1.1 | 2.3 | 3.9 | 5.2 | 10 | 10 | 10 | 10 |
GM25-370CA-12560-xxx Performance Details
| Parameter | 4 | 10 | 21 | 34 | 47 | 78 | 103 | 130 | 478 |
|---|---|---|---|---|---|---|---|---|---|
| Length (mm) | 17 | 19 | 19 | 21 | 21 | 23 | 23 | 25 | 27 |
| No-load speed (rpm) | 850 | 340 | 165 | 100 | 75 | 48 | 34 | 27 | 7.5 |
| Rated speed (rpm) | 750 | 300 | 145 | 86 | 64 | 38 | 29 | 23 | 6.3 |
| Rated torque (kg.cm) | 0.05 | 0.12 | 0.26 | 0.4 | 0.6 | 0.9 | 1.2 | 1.4 | 2.5 |
| Max. tolerance torque (kg.cm) | 0.3 | 0.75 | 1.5 | 2.6 | 3.5 | 10 | 10 | 10 | 10 |
Product Application
Automatic door operators, automatic energy saving bath, electrical controlled valve, robots, grass cutter, electric curtain, camera, medical service, oxygen machine, etc.
Other Applications
| Application Field | Examples | |||
|---|---|---|---|---|
| Business Machines | Vending Machines | Printers | ATM | Copiers and Scanners |
| Camera and Optical | Video | Cameras | Projectors | - |
| Lawn and Garden | Lawn Mowers | Snow Blowers | Trimmers | Leaf Blowers |
Certifications
ISO9001, SGS, National high-tech enterprises, etc.
