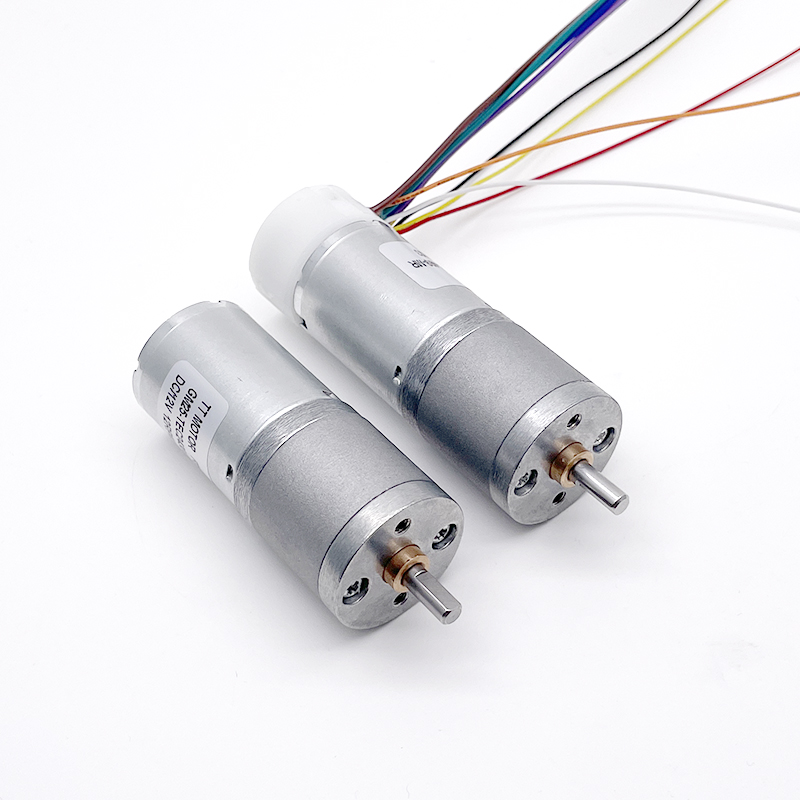

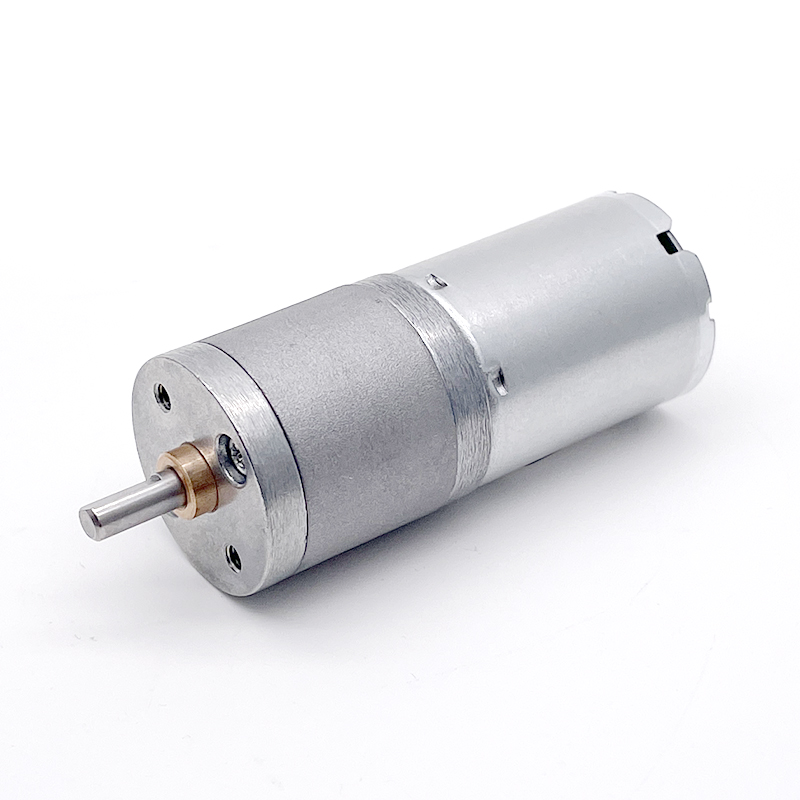

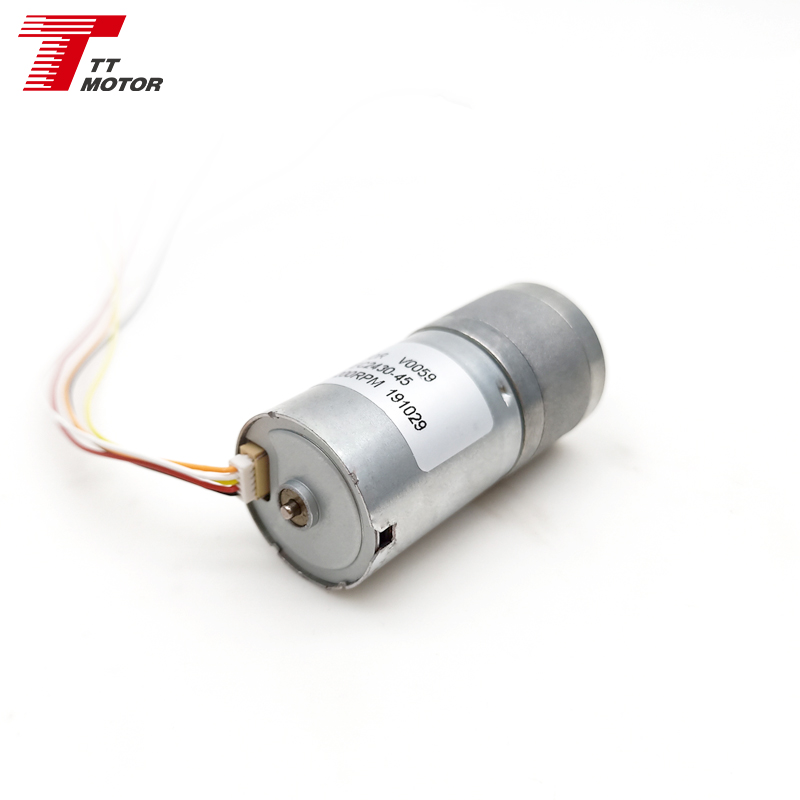

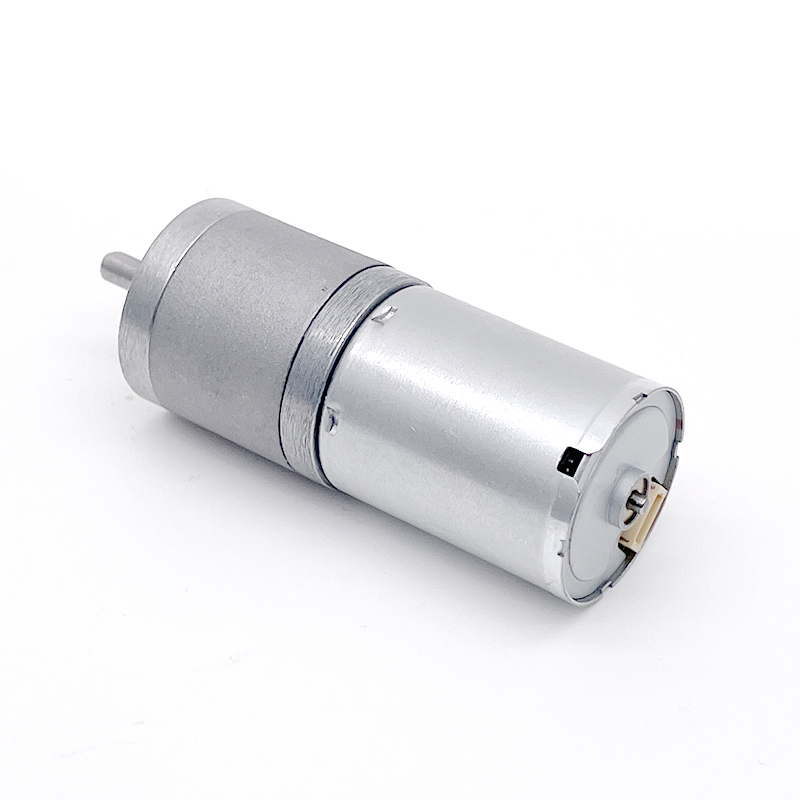

China Supplier 25mm Geared Motor Dc 12v 24v Micro Bldc Motor
Product Description
25mm Geared Motor DC 12V 24V Micro BLDC Motor
Main Features
25mm gearbox plus 24mm brushless motor.
Small size dc gear motor with low speed and big torque.
25mm gear motor provides 0.5Nm torque and high reliability.
Suitable for small diameter, low noise, and big torque applications.
DC gear motors can match encoders (3ppr).
Reduction ratios: 4, 10, 21, 34, 45, 47, 78, 103, 130, 172, 227, 378, 499.

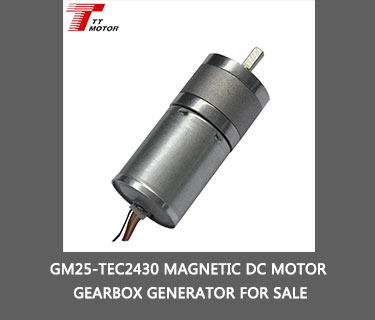

Model Specification: GM25-TEC2430
| Model Group | Rated Voltage | No-load Speed | No-load Current | Rated Speed | Rated Torque | Rated Current | Output Power | Stall Torque | Stall Current |
|---|---|---|---|---|---|---|---|---|---|
| TEC2430-0645 | 6V DC | 4500 r/min | 180 mA | 3500 r/min | 62 g.cm | 570 mA | 2.2 W | 120 g/cm | 1.4 A |
| TEC2430-1260 | 12V DC | 6000 r/min | 180 mA | 4600 r/min | 84 g.cm | 800 mA | 4.6 W | 140 g/cm | 1.6 A |
| TEC2430-2490 | 24V DC | 9000 r/min | 180 mA | 7200 r/min | 90 g.cm | 500 mA | 6.7 W | 180 g/cm | 1.9 A |
GM25-TEC2430-0645-XX Gearbox Data
| Reduction ratio | 4 | 10 | 21 | 34 | 47 | 78 | 103 | 130 | 227 |
|---|---|---|---|---|---|---|---|---|---|
| Length (mm) | 17 | 19 | 19 | 21 | 21 | 23 | 23 | 25 | 25 |
| No-load speed (rpm) | 1100 | 430 | 205 | 130 | 95 | 55 | 43 | 35 | 20 |
| Rated speed (rpm) | 870 | 350 | 165 | 100 | 75 | 45 | 34 | 27 | 16 |
| Rated torque (kg.cm) | 0.2 | 0.4 | 0.9 | 1.3 | 1.7 | 2.9 | 3.8 | 4 | 5 |
| Max. tolerance torque (kg.cm) | 0.4 | 0.8 | 1.7 | 2.4 | 3.4 | 5.6 | 7 | 8 | 10 |
GM25-TEC2430-1260-XX Gearbox Data
| Reduction ratio | 4 | 10 | 21 | 34 | 47 | 78 | 103 | 130 | 227 |
|---|---|---|---|---|---|---|---|---|---|
| Length (mm) | 17 | 19 | 19 | 21 | 21 | 23 | 23 | 25 | 25 |
| No-load speed (rpm) | 1450 | 580 | 170 | 125 | 75 | 58 | 45 | 25 | 12 |
| Rated speed (rpm) | 1150 | 460 | 220 | 135 | 98 | 59 | 45 | 36 | 22 |
| Rated torque (kg.cm) | 0.27 | 0.6 | 1.2 | 1.7 | 2.4 | 3.9 | 5 | 5 | 5 |
| Max. tolerance torque (kg.cm) | 0.45 | 1.0 | 2.1 | 2.8 | 3.9 | 6.6 | 9 | 10 | 10 |
GM25-TEC2430-2490-XX Gearbox Data
| Reduction ratio | 4 | 10 | 21 | 34 | 47 | 78 | 103 | 130 | 227 |
|---|---|---|---|---|---|---|---|---|---|
| Length (mm) | 17 | 19 | 19 | 21 | 21 | 23 | 23 | 25 | 25 |
| No-load speed (rpm) | 2200 | 880 | 420 | 260 | 185 | 115 | 85 | 69 | 40 |
| Rated speed (rpm) | 1800 | 720 | 340 | 210 | 155 | 90 | 70 | 57 | 35 |
| Rated torque (kg.cm) | 0.29 | 0.6 | 1.3 | 1.8 | 2.5 | 4.2 | 5 | 5 | 5 |
| Max. tolerance torque (kg.cm) | 0.58 | 1.3 | 2.6 | 3.7 | 5.1 | 8 | 10 | 10 | 10 |
Product Application
Automatic door operators, automatic energy saving bath, electrical controlled valve, robots, grass cutter, electric curtain, camera, medical service, oxygen machine, etc.
Others Application
| Category | Applications | |||
|---|---|---|---|---|
| Business Machines | Vending Machines | Printers | ATM | Copiers and Scanners |
| Camera and Optical | Video | Cameras | Projectors | - |
| Lawn and Garden | Lawn Mowers | Snow Blowers | Trimmers | Leaf Blowers |
Certifications
ISO9001, SGS, National high-tech enterprises, etc.
