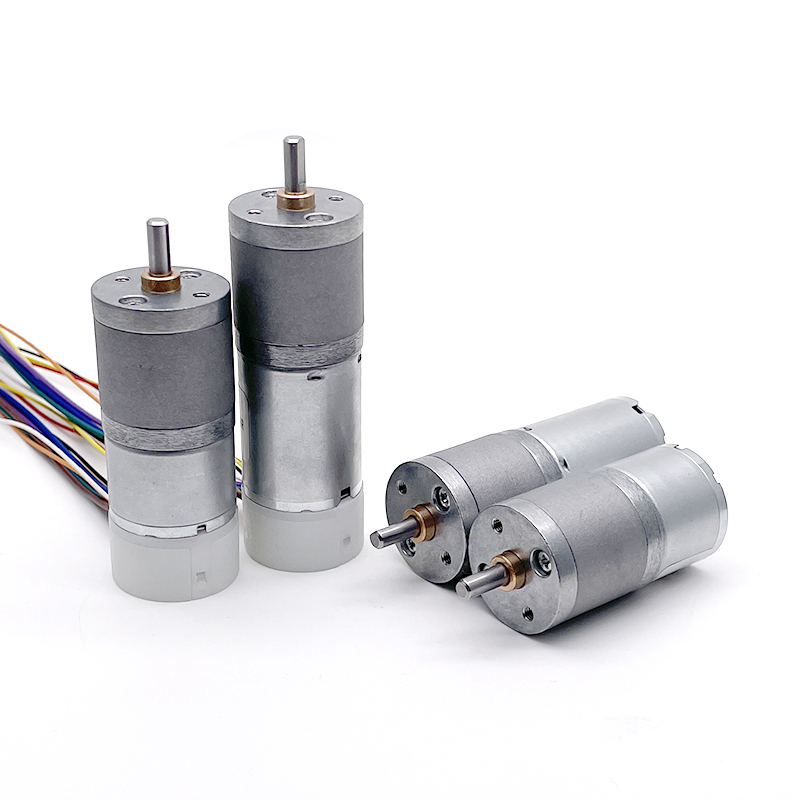

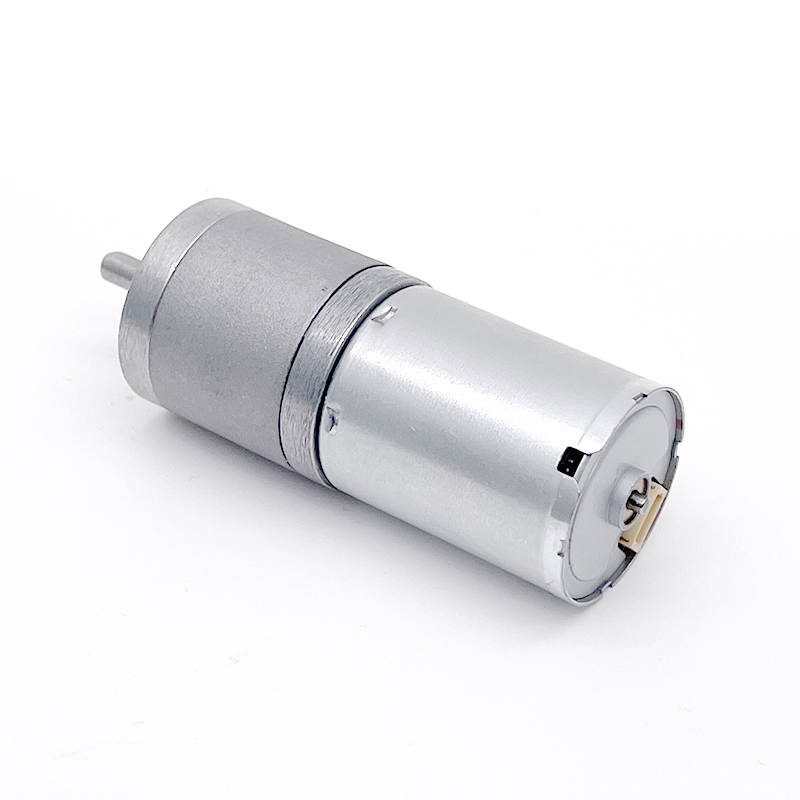

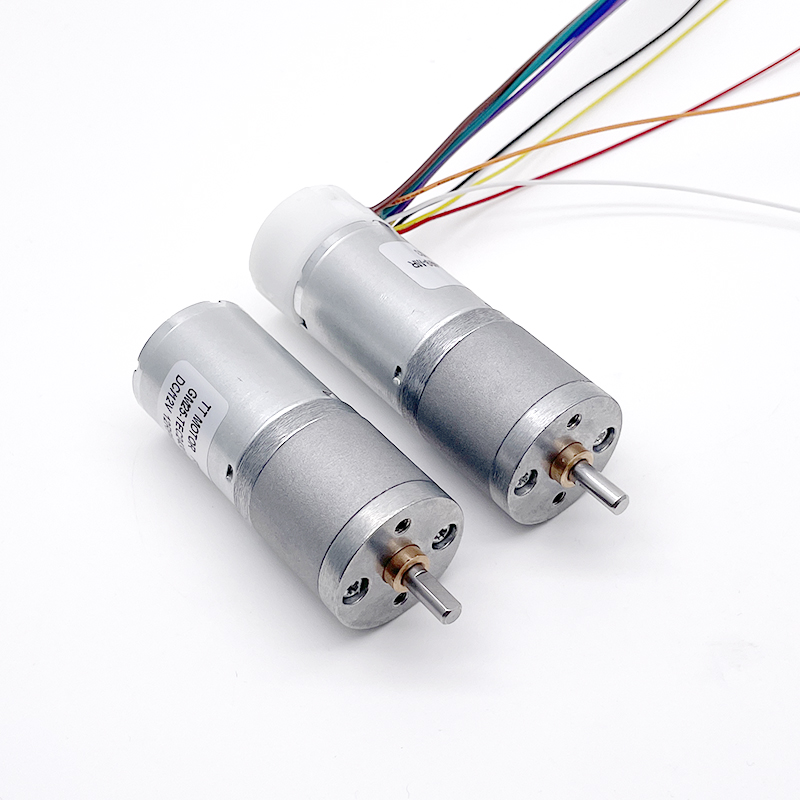

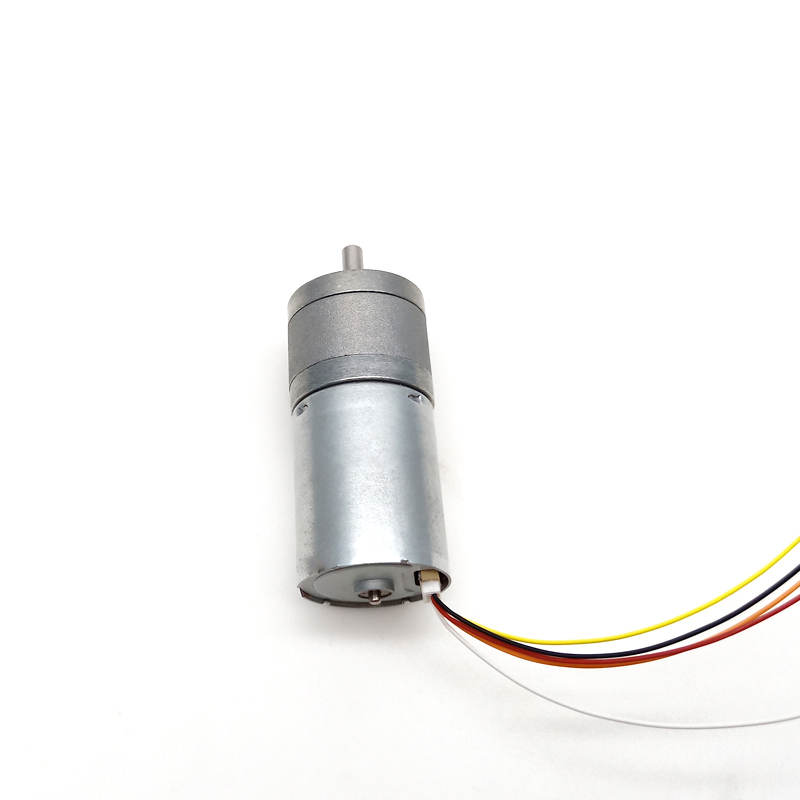

25mm 12v 24v Micro Brushless Gear Dc Motor Used in Medial Products
Product Description
25mm 12v 24v micro brushless gear dc motor used in Medial products
Main Features
- 25mm gearbox plus 24mm brushless motor
- Small size dc gear motor with low speed and big torque
- 25mm gear motor provide 0.5Nm torque and more reliable
- Suitable to small diameter, low noise and big torque application
- Dc gear motors can match encoder, 3ppr
- Reduction ratio: 4, 10, 21, 34, 45, 47, 78, 103, 130, 172, 227, 378, 499

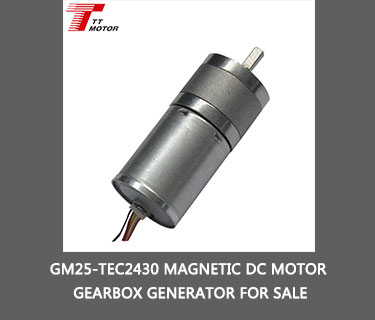

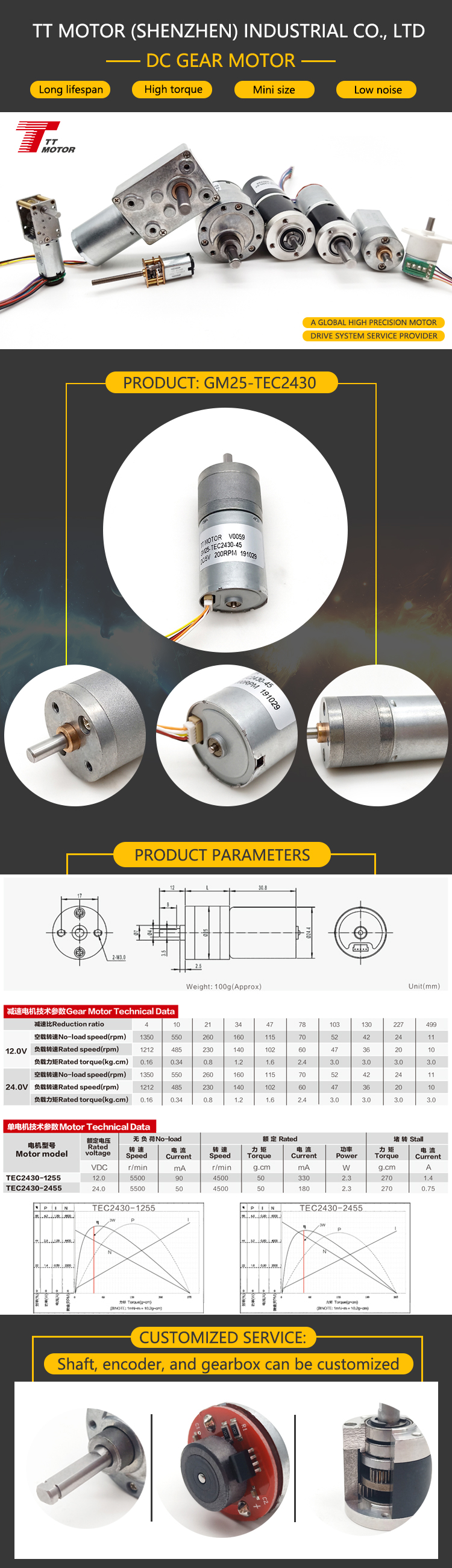

Model Specification: GM25-TEC2430
| Model | Specification Details | Speed Parameter | Torque & Current |
|---|---|---|---|
| TEC2430-0645 | Rated voltage: 6V DC | Rated speed: 3500r/min | Output power: 2.2W |
| No-load speed: 4500r/min | Rated torque: 62g.cm | Stall torque: 120g/cm | |
| No-load current: 180mA | Rated current: 570mA | Stall current: 1.4A | |
| TEC2430-1260 | Rated voltage: 12V DC | Rated speed: 4600r/min | Output power: 4.6W |
| No-load speed: 6000r/min | Rated torque: 84g.cm | Stall torque: 140g/cm | |
| No-load current: 180mA | Rated current: 800mA | Stall current: 1.6A | |
| TEC2430-2490 | Rated voltage: 24V DC | Rated speed: 7200r/min | Output power: 6.7W |
| No-load speed: 9000r/min | Rated torque: 90g.cm | Stall torque: 180g/cm | |
| No-load current: 180mA | Rated current: 500mA | Stall current: 1.9A |
Gearbox Parameter: GM25-TEC2430-0645-XX
| Reduction ratio | 4 | 10 | 21 | 34 | 47 | 78 | 103 | 130 | 227 |
| Length mm | 17 | 19 | 19 | 21 | 21 | 23 | 23 | 25 | 25 |
| No-load speed rpm | 1100 | 430 | 205 | 130 | 95 | 55 | 43 | 35 | 20 |
| Rated speed rpm | 870 | 350 | 165 | 100 | 75 | 45 | 34 | 27 | 16 |
| Rated torque kg.cm | 0.2 | 0.4 | 0.9 | 1.3 | 1.7 | 2.9 | 3.8 | 4 | 5 |
| Max.momentary tolerance torque kg.cm | 0.4 | 0.8 | 1.7 | 2.4 | 3.4 | 5.6 | 7 | 8 | 10 |
Gearbox Parameter: GM25-TEC2430-1260-xx
| Reduction ratio | 4 | 10 | 21 | 34 | 47 | 78 | 103 | 130 | 227 |
| Length mm | 17 | 19 | 19 | 21 | 21 | 23 | 23 | 25 | 25 |
| No-load speed rpm | 1450 | 580270 | 170 | 125 | 75 | 58 | 45 | 25 | 12 |
| Rated speed rpm | 1150 | 460 | 220 | 135 | 98 | 59 | 45 | 36 | 22 |
| Rated torque kg.cm | 0.27 | 0.6 | 1.2 | 1.7 | 2.4 | 3.9 | 5 | 5 | 5 |
| Max.momentary tolerance torque kg.cm | 0.45 | 1.0 | 2.1 | 2.8 | 3.9 | 6.6 | 9 | 10 | 10 |
Gearbox Parameter: GM25-TEC2430-2490-xx
| Reduction ratio | 4 | 10 | 21 | 34 | 47 | 78 | 103 | 130 | 227 |
| Length mm | 17 | 19 | 19 | 21 | 21 | 23 | 23 | 25 | 25 |
| No-load speed rpm | 2200 | 880 | 420 | 260 | 185 | 115 | 85 | 69 | 40 |
| Rated speed rpm | 1800 | 720 | 340 | 210 | 155 | 90 | 70 | 57 | 35 |
| Rated torque kg.cm | 0.29 | 0.6 | 1.3 | 1.8 | 2.5 | 4.2 | 5 | 5 | 5 |
| Max.momentary tolerance torque kg.cm | 0.58 | 1.3 | 2.6 | 3.7 | 5.1 | 8 | 10 | 10 | 10 |
Product Application
Automatic door operators, automatic energy saving bath, electrical controlled valve, robots, grass cutter, electric curtain, camera, medical service, oxygen machine, etc.
| Others Application | ||||
|---|---|---|---|---|
| Business Machines | Vending Machines | Printers | ATM | Copiers and Scanners |
| Camera and Optical | Video | Cameras | Projectors | - |
| Lawn and Garden | Lawn Mowers | Snow Blowers | Trimmers | Leaf Blowers |
Certifications
ISO9001, SGS, National high-tech enterprises, etc.
Our Customers
NIKE, FLEXTRONICS, STANLEY, etc.
Packing & Delivery
Standard Packing
Shipping time:
DHL 3-5 working days
UPS 5-7 working days
TNT 5-7 working days
FedEx 7-9 working days
EMS 12-15 working days
China Post / Sea Depends on target country
Our Customer Feedback
Excellent quality, better price, good service, and on time delivery.
Frequently Asked Questions
How to order?
Send us an inquiry → receive our quotation → negotiate details → confirm the sample → sign contract/deposit → mass production → cargo ready → balance/delivery → further cooperation.
How about Sample order?
Samples are available. Please request for details. Once the sample fee is charged, it will be fully refunded when you place the formal order.
Which shipping way is available?
DHL, UPS, FedEx, TNT, EMS, China Post, and Sea shipping options are all available. Other shipping routes can also be arranged; please coordinate for alternative shipping methods if needed.
How long is the producing and shipping?
Delivery time depends on the quantity ordered. Usually, it takes 15-25 working days.
My package has missing products. What can I do?
Please reach out to the support team and we will verify your order with the package contents. We apologize for any inconvenience caused.
How to confirm the payment?
We accept payment by T/T and PayPal. Other payment options can also be processed; please verify before payment by other methods. A 30-50% deposit is available, with the remaining balance to be paid before shipping.
