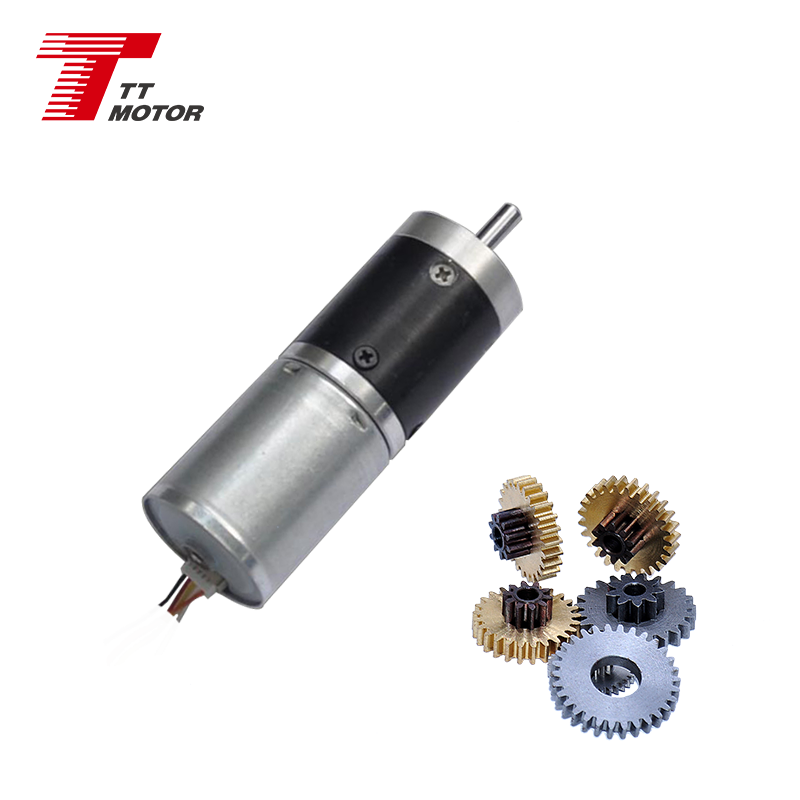

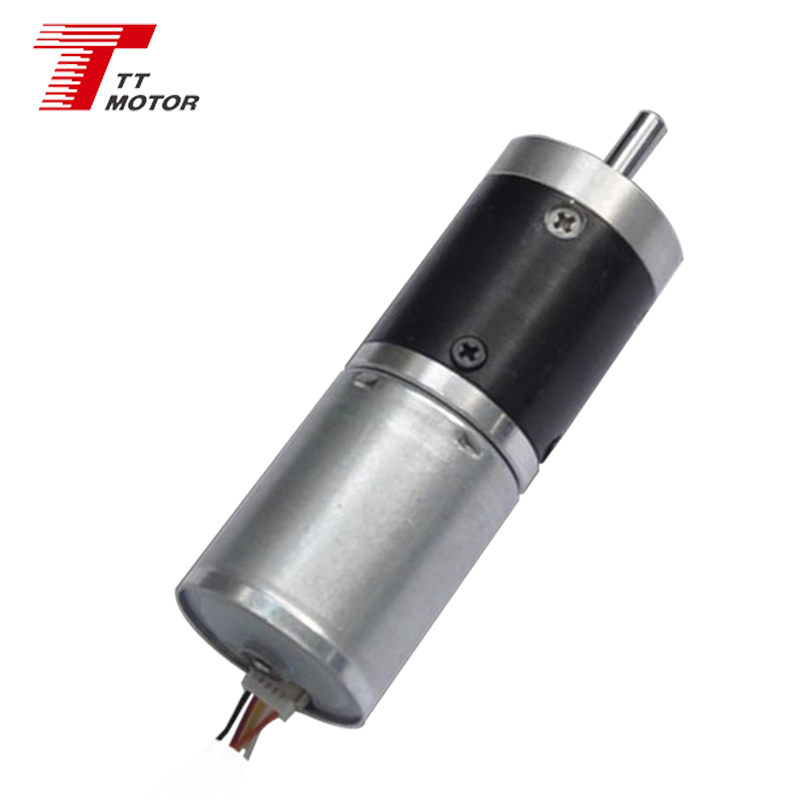

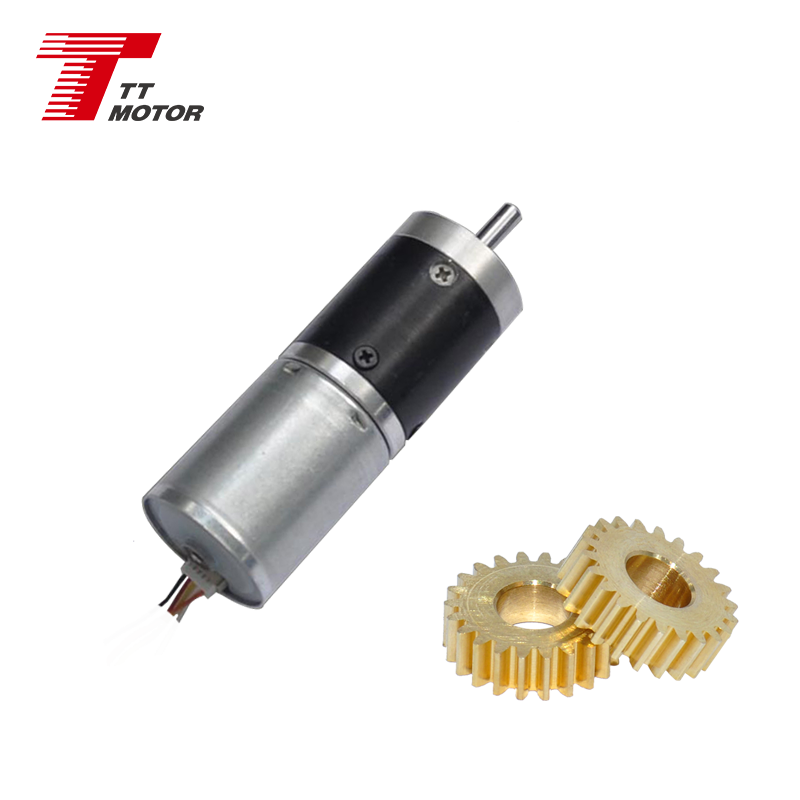

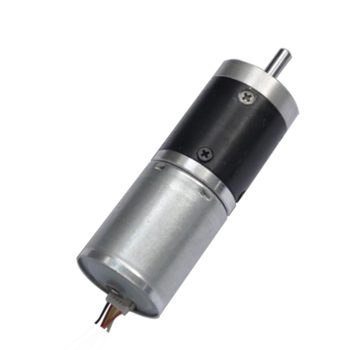

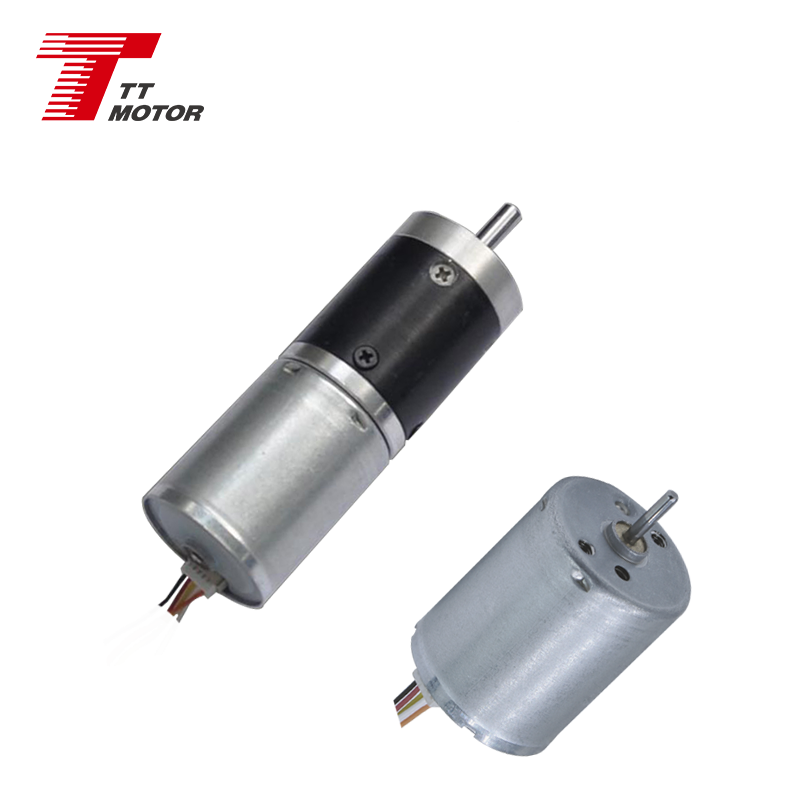

GMP24-TEC2430 24mm Geared Motor Electric 12v Brushless Motor
Product Description
GMP24-TEC2430 24mm geared motor electric 12v brushless motor
- 24mm planetary gearbox plus 24mm brushless motor
- Small size dc gear motor with low speed and big torque
- 24mm gear motor provide 0.5Nm torque and more reliable
- Suitable to small diameter, low noise and big torque application
- Reduction ratio: 4, 14, 19, 27, 51, 71, 100, 139, 189, 264, 369, 516, 720
Motor Performance Parameters
| Motor model no. | Rated voltage | No-load speed | No-load current | Rated speed | Rated torque | Rated current | Output power | Stall torque | Stall current |
|---|---|---|---|---|---|---|---|---|---|
| VDC | r/min | mA | r/min | g.cm | mA | W | g.cm | A | |
| TEC2430-1255 | 12 | 5500 | 90 | 4500 | 50 | 330 | 2.3 | 270 | 1.4 |
| TEC2430-2455 | 24 | 5500 | 50 | 4500 | 50 | 180 | 2.3 | 270 | 0.75 |

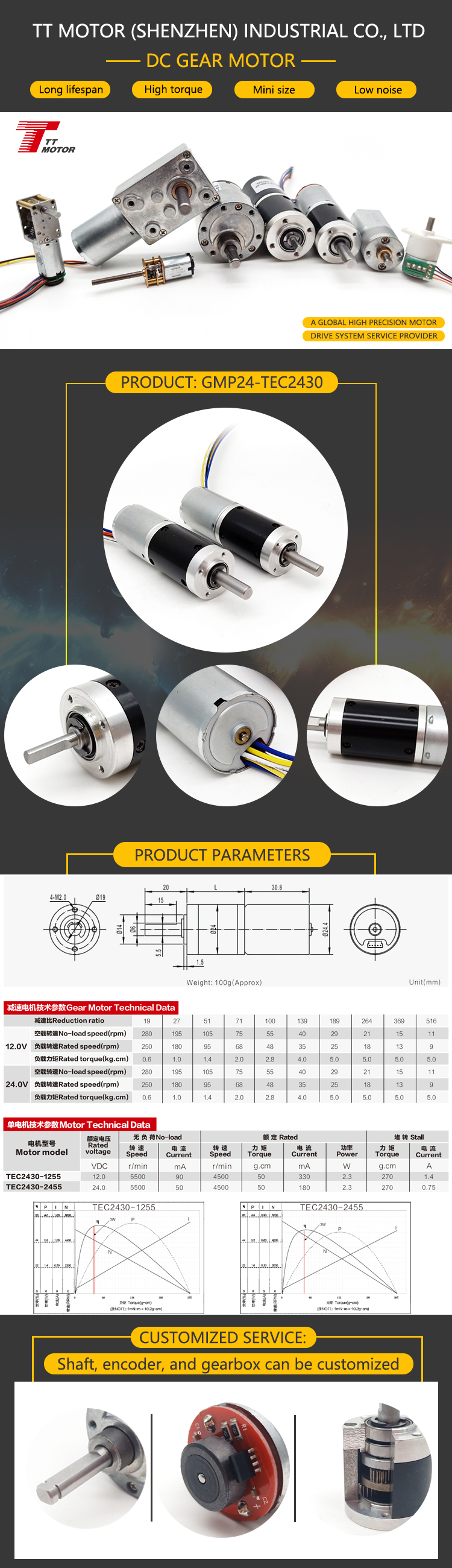

Gearbox Parameters (Reduction Ratio & Dimension)
| Reduction ratio | 19 | 27 | 51 | 71 | 100 | 189 | 264 | 369 | 516 |
|---|---|---|---|---|---|---|---|---|---|
| Length mm | 58.8 | 58.8 | 63.8 | 63.8 | 63.8 | 68.8 | 68.8 | 68.8 | 68.8 |
| No-load speed rpm | 280 | 195 | 105 | 75 | 55 | 29 | 21 | 15 | 11 |
| Rated speed rpm | 250 | 180 | 95 | 68 | 48 | 25 | 18 | 13 | 9 |
| Rated torque kg.cm | 0.6 | 1.0 | 1.4 | 2.0 | 2.8 | 5.0 | 5.0 | 5.0 | 5.0 |
Product Applications
Automatic door operators, automatic energy saving bath, electrical controlled valve, robots, grass cutter, electric curtain, camera, medical service, oxygen machine, etc.
Business Machines
Vending Machines, Printers, ATM, Copiers and Scanners
Camera and Optical
Video, Cameras, Projectors
Lawn and Garden
Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers
Certifications
ISO9001, SGS, National high-tech enterprises, etc.
