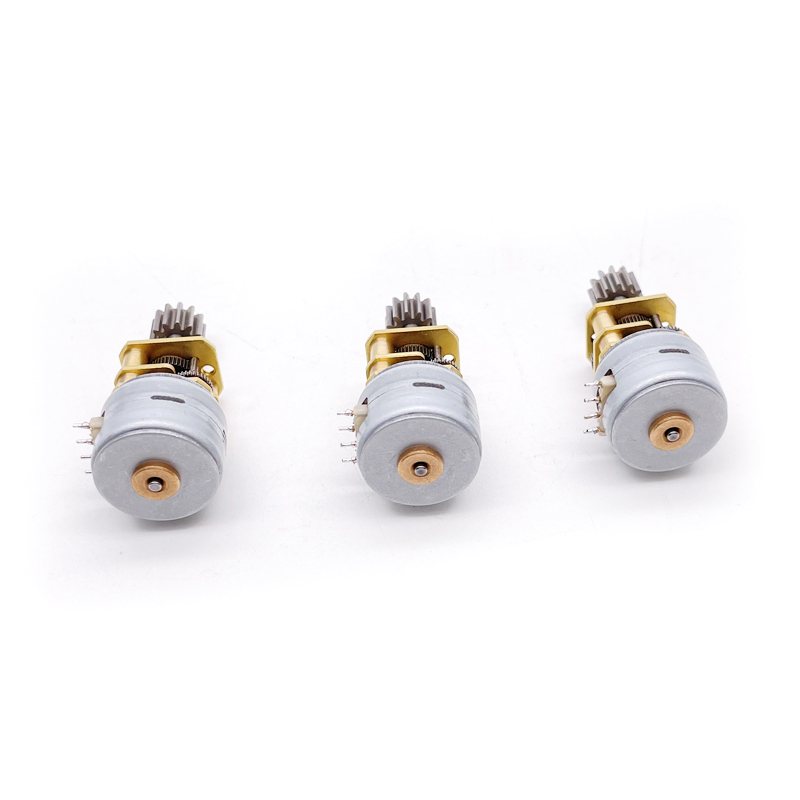

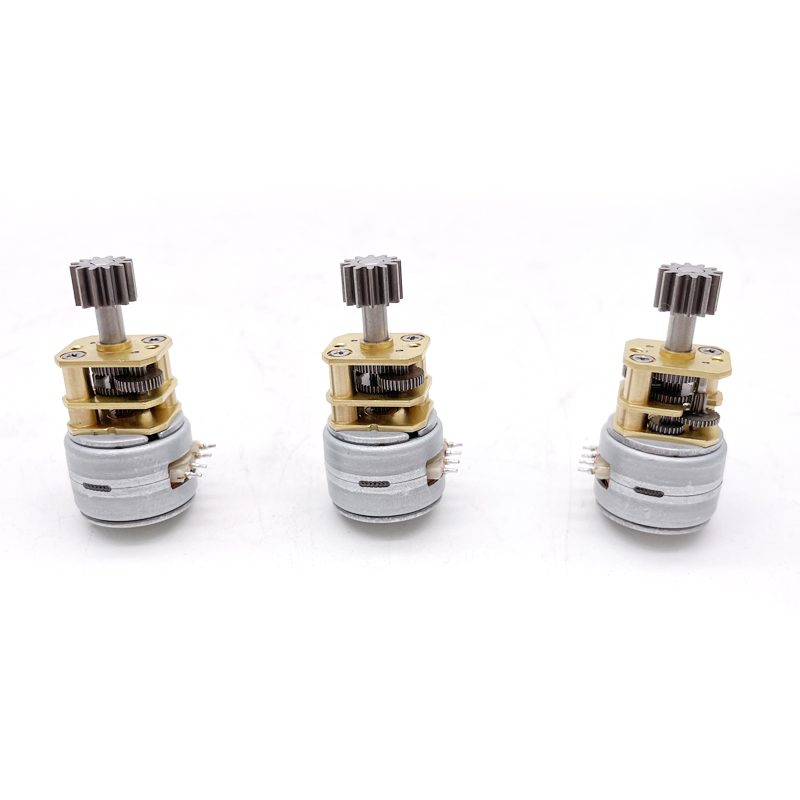

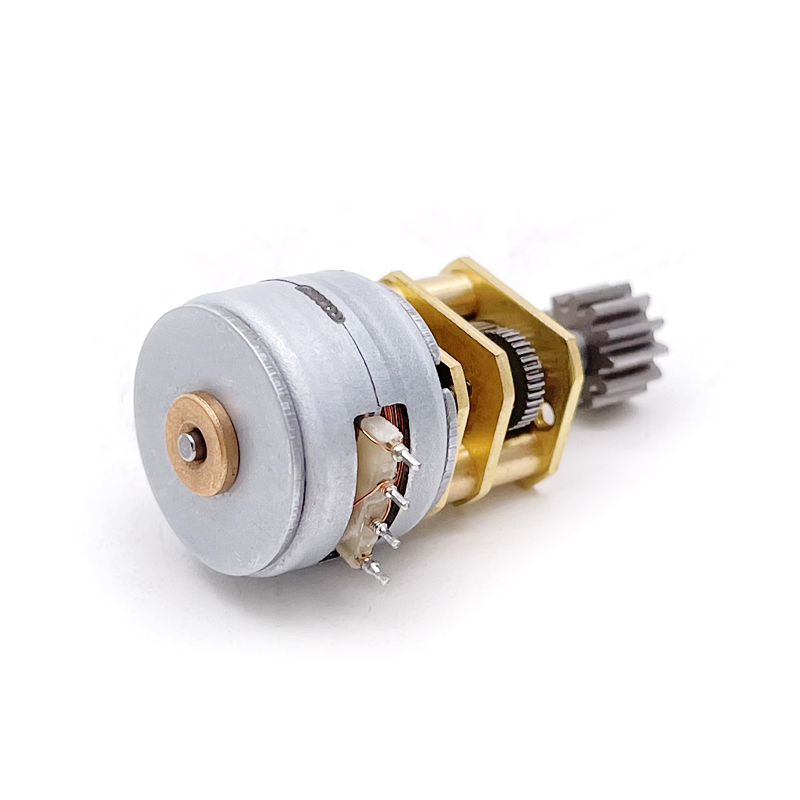

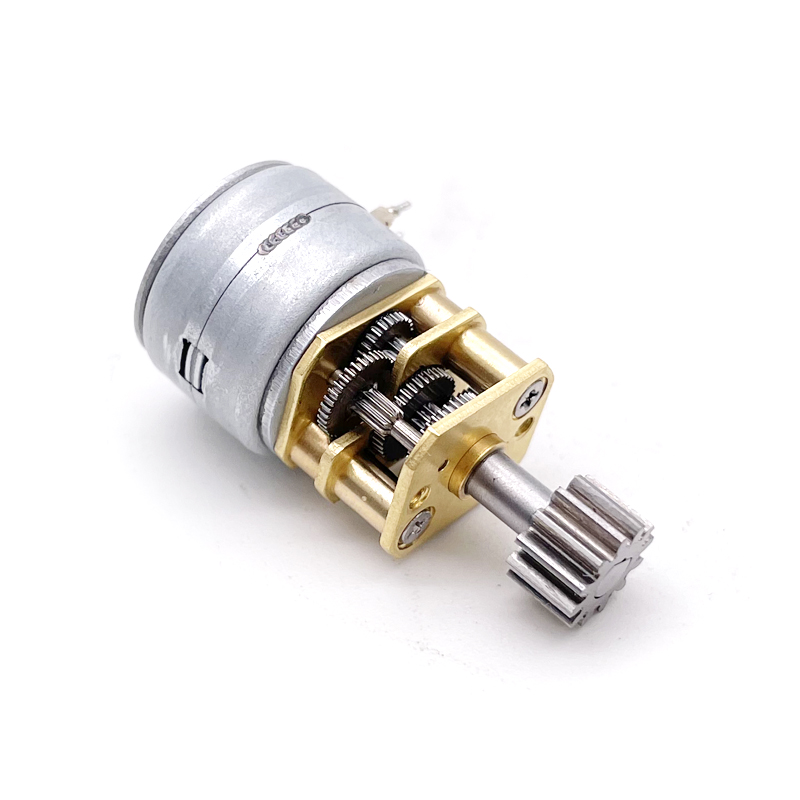

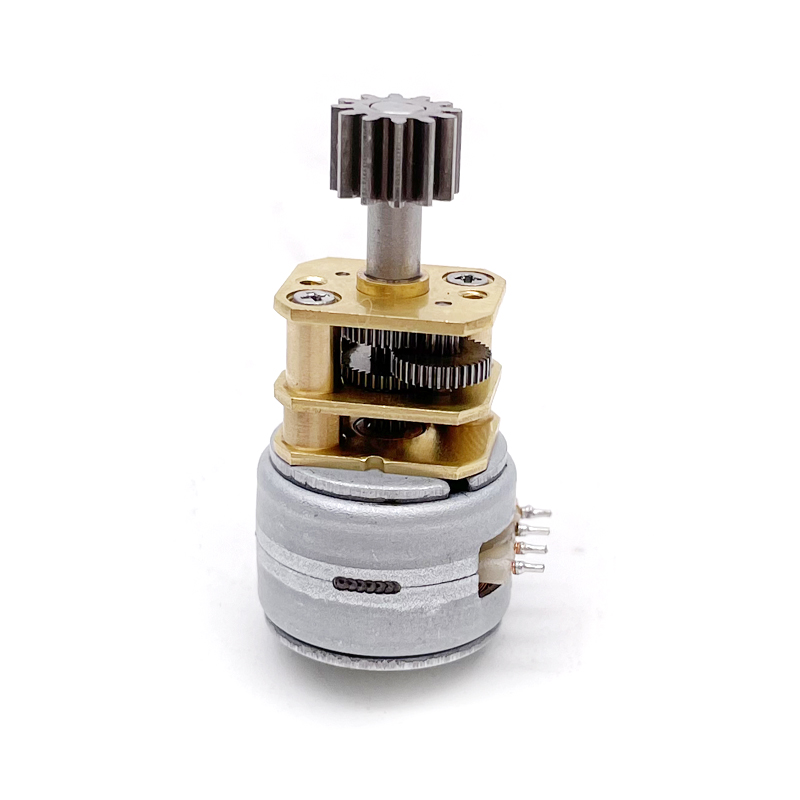

DC Stepper Motor 12mm Gearbox Plus 15mm Stepper Motor Quiet Advanced Technology Motor
Product Description
Product Description

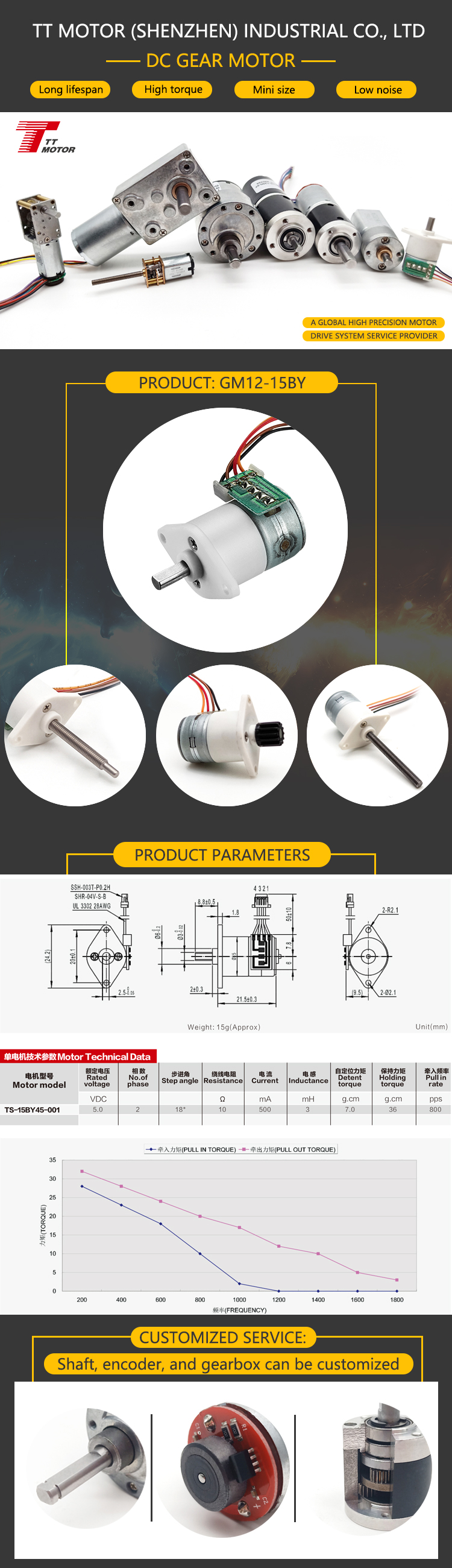

The GM12-15BY is a compact, high precision stepper motor integrating a 12mm gearbox and a 15mm stepper motor, weighing approx 15g. It supports 5V DC power, offering 5 reduction ratios with 2-4 gear stages and a 11.5mm gearbox length. Its standalone motor features 2 phase, 48g.cm holding torque and 1050pps pull-in rate. With max rated torque 0.5kg.cm and max momentary torque 1kg.cm, It's ideal for miniature precision devices.
Application
Certification
Packaging & Shipping
Production & Quality Control
FAQ
What is the primary highlight of the GM12-15BY stepper motor?
The GM12-15BY integrates a 12mm gearbox with a 15mm stepper motor. It is extremely compact and lightweight (approx 15g), making it perfect for miniature high-precision devices.
What operating voltage and gear options does it offer?
It supports 5V DC power and provides 5 distinct reduction ratios featuring 2 to 4 gear stages, with a gearbox length of 11.5mm.
What is the torque rating of this micro gearbox motor?
The GM12-15BY motor delivers a maximum rated torque of 0.5kg.cm and a maximum momentary torque capability of 1kg.cm.
What are the specifications of the standalone motor?
The standalone motor operates as a 2-phase system, outputting 48g.cm of holding torque with a pull-in rate of 1050pps.
Which applications benefit most from this stepper motor?
It is highly recommended for miniature precision instrumentation, micro mechanical devices, and automated systems requiring controlled, high-torque movements in tight spaces.
