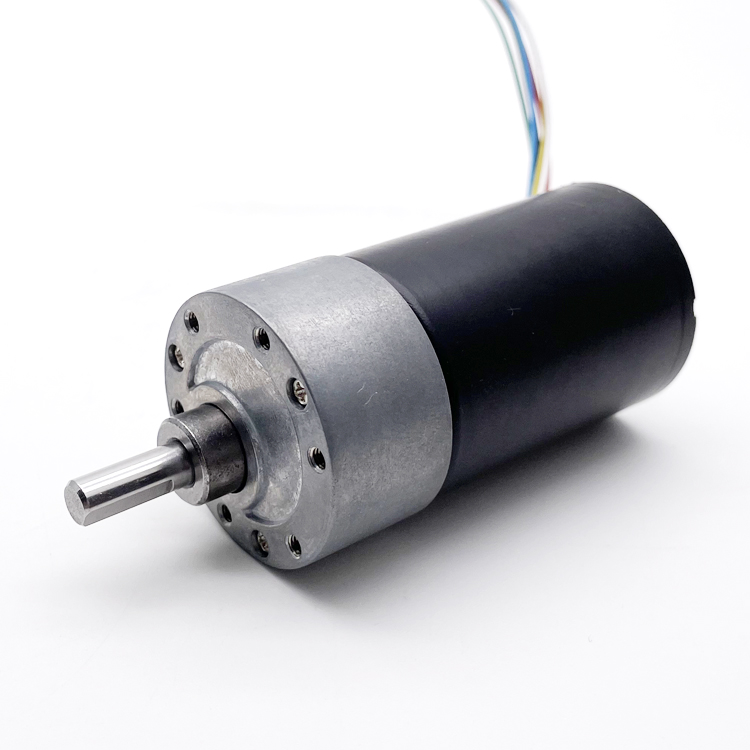

37mm Electric Bldc Motor 12v 24v Mini Dc Gear Motor

Product Description

37mm electric bldc motor 12v 24v mini dc gear motor

Main Features:

37mm spur gearbox plus TEC3650&3640 brushless motor
Small size dc gear motor with low speed and big torque
37mm gear motor provide 1.0Nm torque and more reliable
Suitable to small diameter, low noise and big torque application
Reduction ratio: 6, 10, 19, 30, 44, 56, 90, 131, 169, 270, 506, 810

Model: Gear Motor GM37-TEC3650

Model Details	Electrical Specs	Speed Performance	Torque & Power
TEC3650-2465	Rated voltage: 24VDC No-load current: 200mA Rated current: 1000mA Stall current: 2A	Rated speed: 5400r/min No-load speed: 6500r/min	Output power: 11.5W Rated torque: 200g.cm Stall torque: 1150g.cm
TEC3650-2440	Rated voltage: 24VDC No-load current: 120mA Rated current: 600mA Stall current: 2A	Rated speed: 3200r/min No-load speed: 4000r/min	Output power: 6.6W Rated torque: 200g.cm Stall torque: 1000g.cm
TEC3650-1245	Rated voltage: 12VDC No-load current: 150mA Rated current: 800mA Stall current: 2.5A	Rated speed: 3500r/min No-load speed: 4500r/min	Output power: 8.3W Rated torque: 230g.cm Stall torque: 820g.cm

GM37-TEC3650-2465-xx Performance Parameters

Reduction ratio	6	10	30	44	56	90	169	270	506
Length mm	19	19	21.5	24	24	24	26.5	26.5	29
No-load speed rpm	1000	650	215	145	110	70	38	24	12.5
Rated speed rpm	830	540	180	122	95	65	34	22	11
Rated torque kg.cm	0.7	1.2	3.6	5.2	6.5	10	10	10	10
Max. tolerance torque kg.cm	2	5	15	15	15	15	15	15	15

GM37-TEC3650-2440-xx Performance Parameters

Reduction ratio	6	10	30	44	56	90	169	270	506
Length mm	19	19	21.5	24	24	24	26.5	26.5	29
No-load speed rpm	620	380	130	90	70	43	23	14.5	7.5
Rated speed rpm	500	320	100	72	55	36	19	12.5	6.5
Rated torque kg.cm	0.7	1.2	3.6	5.2	6.5	10	10	10	10
Max. tolerance torque kg.cm	2	5	15	15	15	15	15	15	15

GM37-TEC3650-1245-xx Performance Parameters

Reduction ratio	6	10	30	44	56	90	169	270	506
Length mm	19	19	21.5	24	24	24	26.5	26.5	29
No-load speed rpm	710	430	150	100	80	50	27	17	9
Rated speed rpm	580	350	115	80	62	39	21	13	7
Rated torque kg.cm	0.9	1.6	4.1	6.1	7.7	10	10	10	10
Max. tolerance torque kg.cm	3.5	5.7	15	15	15	15	15	15	15

Related Product Applications

Business Machines:	ATM, Copiers and Scanners, Currency Handling, Point of Sale, Printers, Vending Machines.
Food and Beverage:	Beverage Dispensing, Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Home Entertainment and Gaming:	Gaming Machines, Video Games, Optical Disk Drives, RC and Power Toys.
Home Technologies:	Home Ventilation, Air Purifiers and Dehumidifiers, Range Hoods, Washers and Dryers, Refrigerators, Dishwashers, Floor Care, Whirlpool and Spa, Showers, Smart Metering, Coffee Machines.
Lawn and Garden:	Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers.
Personal Care:	Hair Cutting, Hair Care, Massagers.
Power Tools:	Drills and Drivers, Sanders, Grinders, Polishers, Saws.
Camera and Optical:	Video, Cameras, Projectors.

Product Application

Automatic door operators, automatic energy saving bath, electrical controlled valve, robots, grass cutter, electric curtain, camera, medical service, oxygen machine, etc.

Others Application Summary

Category	Applications
Business Machines	Vending Machines	Printers	ATM	Copiers and Scanners
Camera and Optical	Video	Cameras	Projectors	-
Lawn and Garden	Lawn Mowers	Snow Blowers	Trimmers	Leaf Blowers

Certifications

ISO9001, SGS, National high-tech enterprises, etc.
